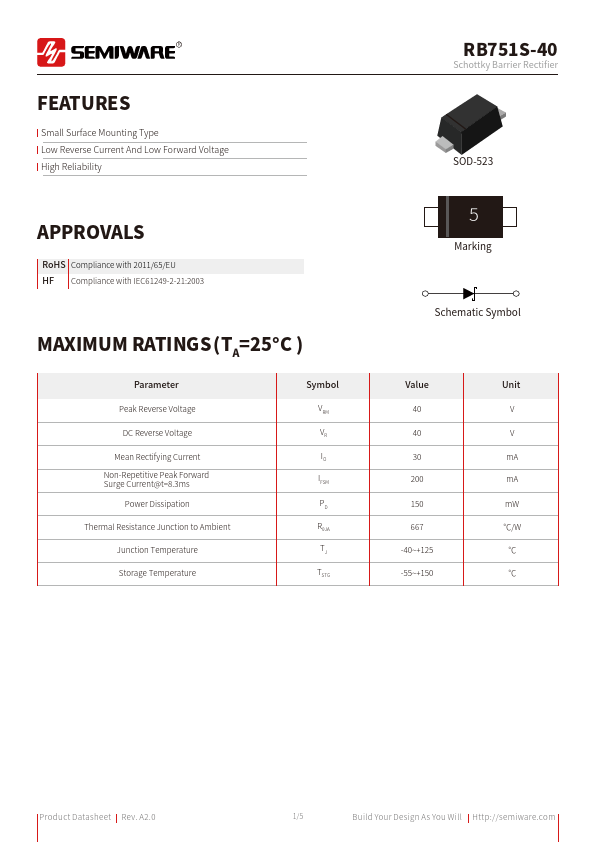

RB751S-40
RB751S-40 is Schottky Barrier Rectifier manufactured by Semiware Semiconductor.
Features
Small Surface Mounting Type Low Reverse Current And Low Forward Voltage High Reliability
APPROVALS
RoHS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter Peak Reverse Voltage DC Reverse Voltage Mean Rectifying Current Non-Repetitive Peak Forward Surge Current@t=8.3ms
Power Dissipation Thermal Resistance Junction to Ambient
Junction Temperature Storage Temperature
Symbol VRM VR IO IFSM PD RθJA TJ TSTG
Schottky Barrier Rectifier
SOD-523
Marking
Schematic Symbol
Value 40 40 30 200 150 667
-40~+125 -55~+150
Unit V V mA mA mW ℃/W
℃ ℃
Product Datasheet Rev. A2.0
1/5
