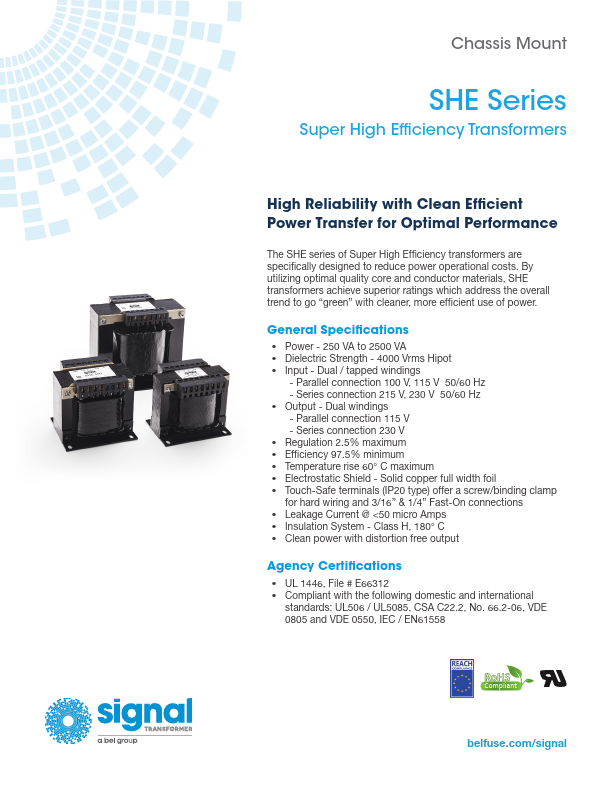

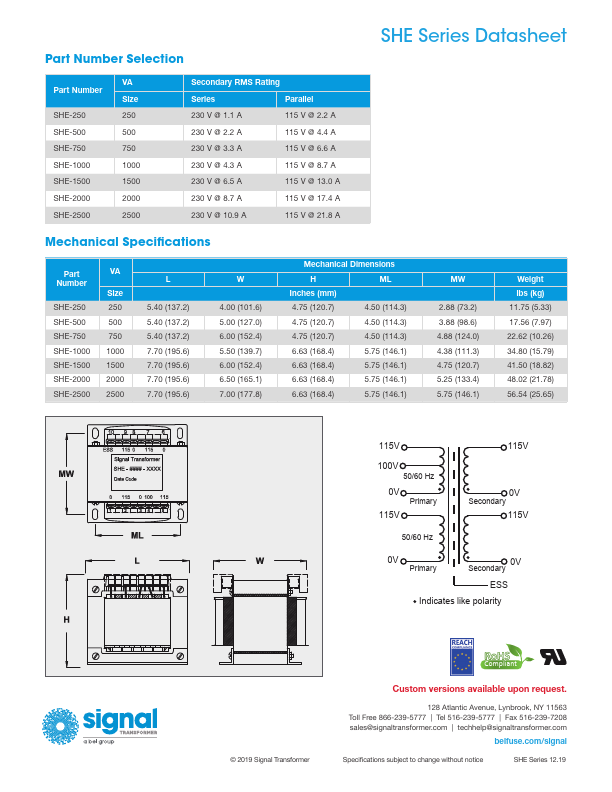

Chassis Mount SHE Series Super High Efficiency Transformers High Reliability with Clean Efficient Power Transfer for Optimal Performance The SHE series of Super High Efficiency transformers are specifically designed to reduce power operational costs. By utilizing optimal quality core and conductor materials, SHE transformers achieve superior ratings which address the overall trend to go “green” with cleaner, more efficient use of power. General Specifications - Power - 250 VA to 2500 VA - Dielectric Strength - 4000 Vrms Hipot - Input - Dual / tapped windings - Parallel connection 100 V, 115 V 50/60 Hz - Series connection 215 V, 230 V 50/60 Hz - Output - Dual windings - Parallel connection 115 V - Series connection 230 V - Regulation 2.5% maximum - Efficiency 97.5% minimum - Temperature rise 60° C maximum - Electrostatic Shield - Solid copper full width foil - Touch-Safe terminals (IP20 type) offer a screw/binding clamp for hard wiring and 3/16” & 1/4” Fast-On connections - Leakage Current @ <50 micro Amps - Insulation System - Class H, 180° C - Clean power with distortion free output Agency Certifications - UL 1446, File # E66312 - pliant with the following domestic and international standards: UL506 / UL5085, CSA C22.2, No. 66.2-06, VDE 0805 and VDE 0550, IEC / EN61558 Ro HS pliant belfuse./signal Part Number Selection Part Number SHE-250 SHE-500 SHE-750 SHE-1000 SHE-1500 SHE-2000 SHE-2500 VA Size 250 500 750 1000 1500 2000 2500 Secondary RMS Rating Series Parallel 230 V @ 1.1...
