SD4840P - PWM Controller

Product Overview

📥 Download Datasheet

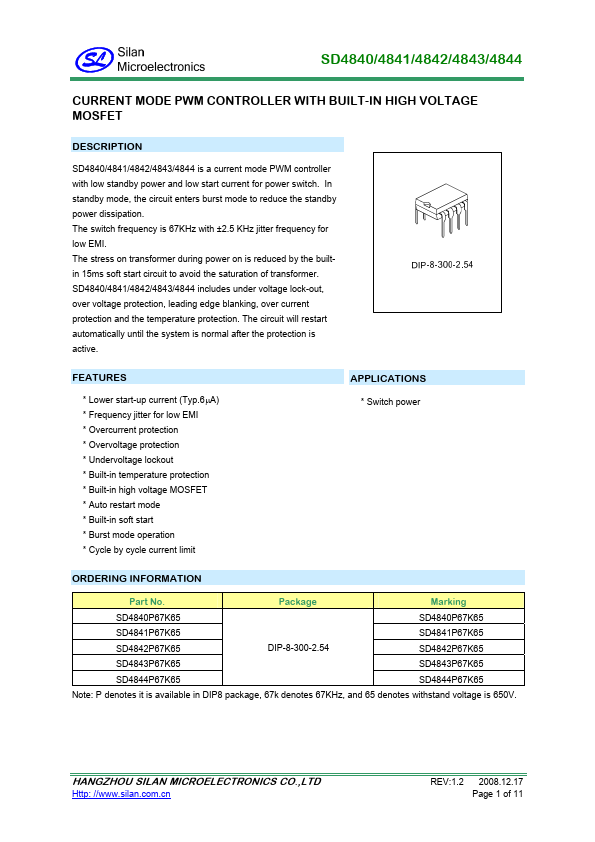

Datasheet preview – SD4840P

Datasheet Details

Part number SD4840P
Manufacturer Silan Microelectronics
File Size 787.06 KB
Description PWM Controller
Datasheet download datasheet SD4840P Datasheet
Note This datasheet PDF includes multiple part numbers: SD4840P, SD4840.
Please refer to the document for exact specifications by model.

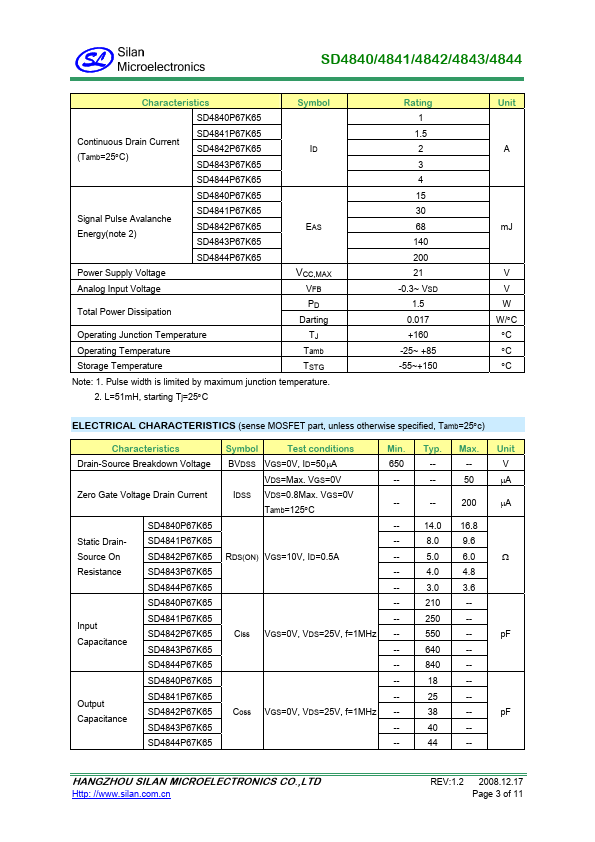

Additional preview pages of the SD4840P datasheet.

Product details

Description

SD4840/4841/4842/4843/4844 is a current mode PWM controller with low standby power and low start current for power switch.

In standby mode, the circuit enters burst mode to reduce the standby power dissipation.

The switch frequency is 67KHz with ±2.5 KHz jitter frequency for low EMI.
