SA24403 - Synchronous Step Down Regulator

Product Overview

Silergy

Datasheet Details

Part number	SA24403
Manufacturer	Silergy
File Size	217.67 KB
Description	Synchronous Step Down Regulator
Datasheet	SA24403 Datasheet

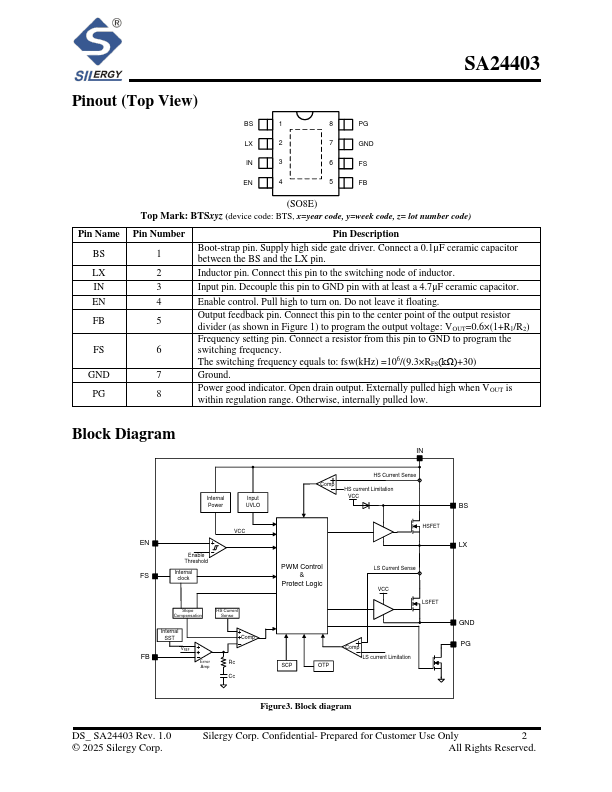

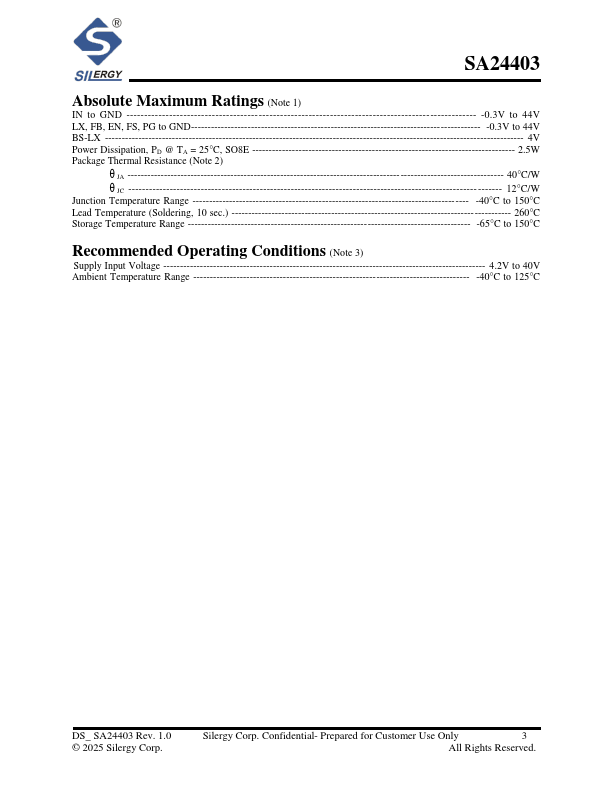

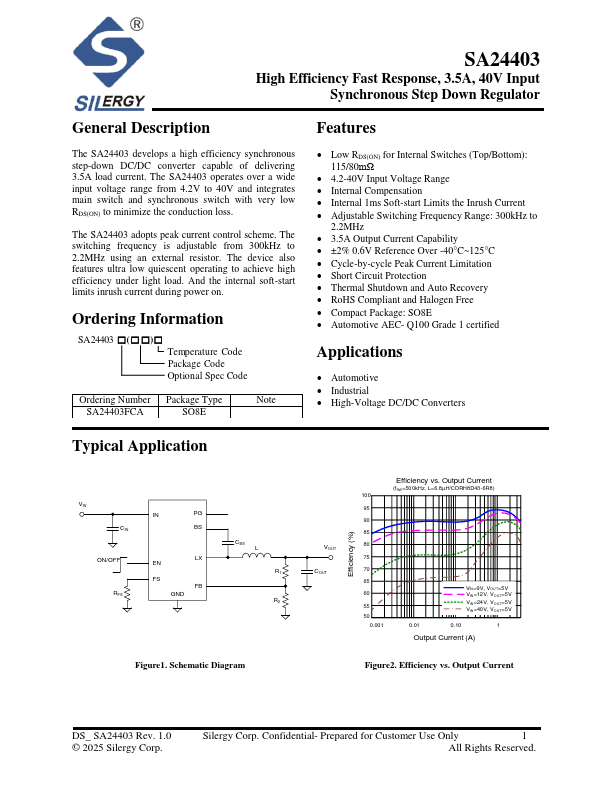

Additional preview pages of the SA24403 datasheet.

Product details

Description

The SA24403 develops a high efficiency synchronous step-down DC/DC converter capable of delivering 3.5A load current.

The SA24403 operates over a wide input voltage range from 4.2V to 40V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

Features

ultra low quiescent operating to achieve high efficiency under light load. And the internal soft-start limits inrush current during power on. Ordering Information SA24403.
(.
).
Temperature Code Package Code Optional Spec Code Ordering Number Package Type Note SA24403FCA SO8E Features.
Low RDS(ON) for Internal Switches (Top/Bottom): 115/80mΩ.
4.2-40V Input Voltage Range.
Internal Compensation.
Internal 1ms Soft-start Limit.
