SQ24800B
SQ24800B is Hot Swap Smart Fuse manufactured by Silergy.
Hot Swap Smart Fuse

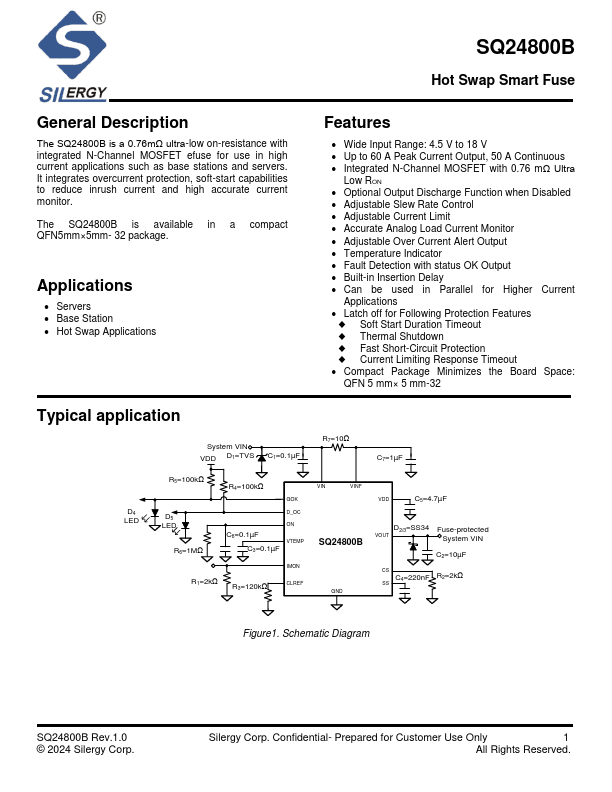

General Description
The SQ24800B is a 0.76mΩ ultra-low on-resistance with integrated N-Channel MOSFET efuse for use in high current applications such as base stations and servers. It integrates overcurrent protection, soft-start capabilities to reduce inrush current and high accurate current monitor.
The SQ24800B is available in a pact QFN5mm×5mm- 32 package.
Applications
- Servers
- Base Station
- Hot Swap Applications
Features
- Wide Input Range: 4.5 V to 18 V
- Up to 60 A Peak Current Output, 50 A Continuous
- Integrated N-Channel MOSFET with 0.76 mΩ Ultra
Low RON
- Optional Output Discharge Function when Disabled
- Adjustable Slew Rate Control
- Adjustable Current Limit
- Accurate Analog Load Current Monitor
- Adjustable Over Current Alert Output
- Temperature Indicator
- Fault Detection with status OK Output
- Built-in Insertion Delay

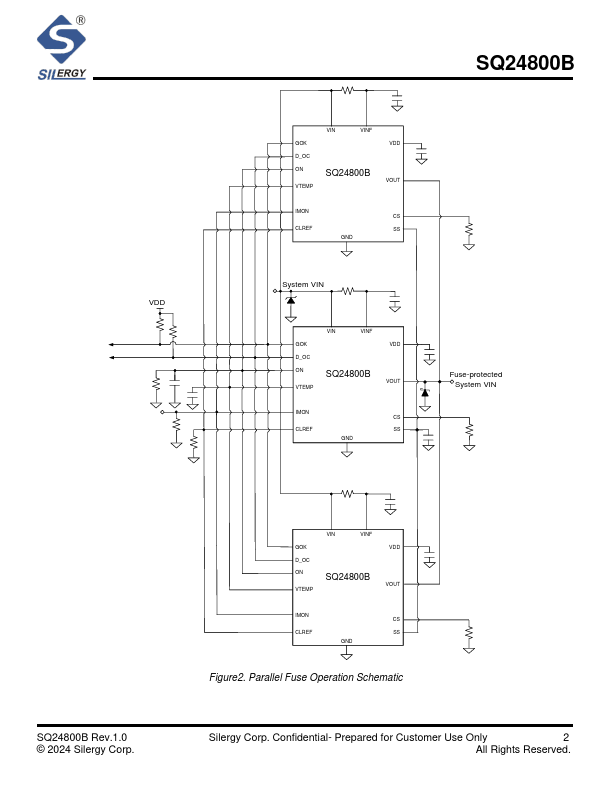

- Can be used in Parallel for Higher Current
Applications
- Latch off for Following Protection Features
- Soft Start Duration Timeout
- Thermal Shutdown
- Fast Short-Circuit Protection
- Current Limiting Response Timeout
- pact Package Minimizes the Board Space:
QFN 5 mm× 5...
