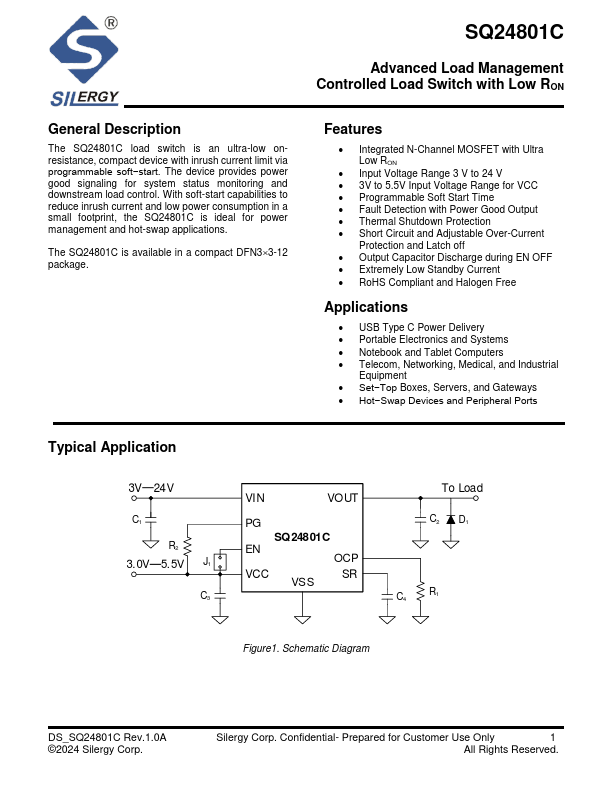

Advanced Load Management Controlled Load Switch with Low RON General Description The SQ24801C load switch is an ultra-low onresistance, pact device with inrush current limit via programmable soft- start. The device provides power good signaling for system status monitoring and downstream load control. With soft-start capabilities to reduce inrush current and low power consumption in a small footprint, the SQ24801C is ideal for power management and hot-swap applications. The SQ24801C is available in a pact DFN33-12 package. Features - Integrated N-Channel MOSFET with Ultra Low RON - Input Voltage Range 3 V to 24 V - 3V to 5.5V Input Voltage Range for VCC - Programmable Soft Start Time - Fault Detection with Power Good Output - Thermal Shutdown Protection - Short Circuit and Adjustable Over-Current Protection and Latch off - Output Capacitor Discharge during EN OFF - Extremely Low Standby Current - Ro HS pliant and Halogen Free Applications - USB Type C Power Delivery - Portable Electronics and Systems - Notebook and Tablet puters - Tele, Networking, Medical, and Industrial Equipment - Set- Top Boxes, Servers, and Gateways - Hot- Swap Devices and Peripheral Ports Typical Application 3V- 24V C1 R2 3.0V- 5. 5V J1 C3 VI...
