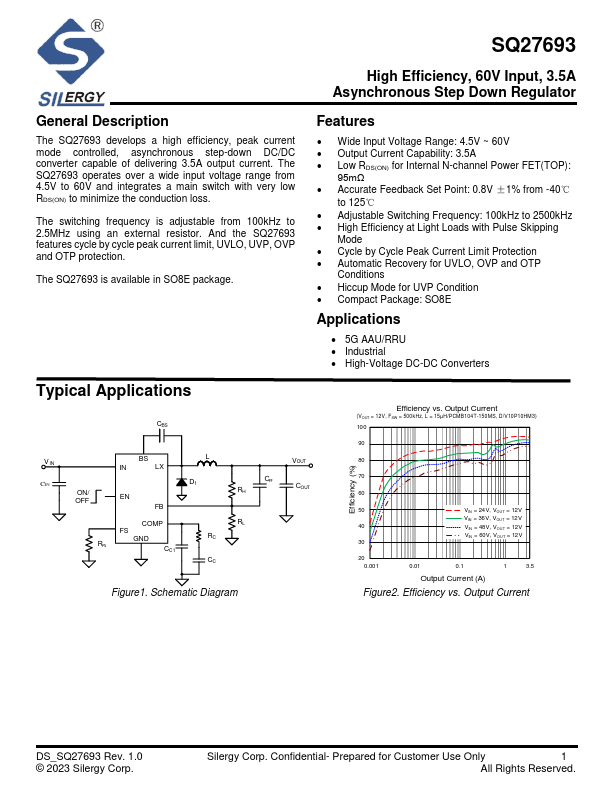

SQ27693
SQ27693 is 3.5A Asynchronous Step Down Regulator manufactured by Silergy.
Description
The SQ27693 develops a high efficiency, peak current mode controlled, asynchronous step-down DC/DC converter capable of delivering 3.5A output current. The SQ27693 operates over a wide input voltage range from 4.5V to 60V and integrates a main switch with very low RDS(ON) to minimize the conduction loss.
The switching frequency is adjustable from 100k Hz to 2.5MHz using an external resistor. And the SQ27693 features cycle by cycle peak current limit, UVLO, UVP, OVP and OTP protection.
The SQ27693 is available in SO8E package.
Features
- Wide Input Voltage Range: 4.5V ~ 60V
- Output Current Capability: 3.5A
- Low RDS(ON) for Internal N-channel Power FET(TOP):
95mΩ
- Accurate Feedback Set Point: 0.8V ±1% from -40℃ to 125℃
- Adjustable Switching Frequency: 100k Hz to 2500k Hz
- High Efficiency at Light Loads with Pulse Skipping
Mode
- Cycle by Cycle Peak Current Limit Protection
- Automatic Recovery for UVLO, OVP and OTP
Conditions
- Hiccup Mode for UVP Condition
- pact Package: SO8E
Applications
- 5G AAU/RRU
- Industrial
- High-Voltage DC-DC Converters
Typical Applications
V IN CIN
ON/ OFF
EN FB
P FS
GND CC1
L D1
RC CC
VOUT
CFF RH
COUT
Figure1. Schematic...
