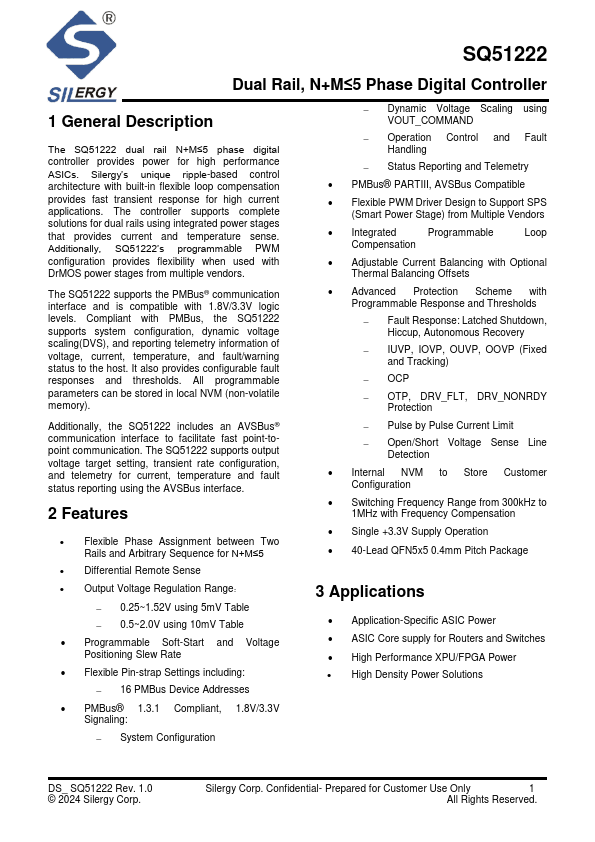

SQ51222
Description
The SQ51222 dual rail N+M≤5 phase digital controller provides power for high performance ASICs.
Key Features
- Flexible Phase Assignment between Two Rails and Arbitrary Sequence for N+M≤5
- Differential Remote Sense
- Output Voltage Regulation Range：
- Programmable Soft-Start and Voltage Positioning Slew Rate
- Flexible Pin-strap Settings including
- PMBus® 1.3.1 pliant, 1.8V/3.3V Signaling
- Flexible PWM Driver Design to Support SPS (Smart Power Stage) from Multiple Vendors
- Adjustable Current Balancing with Optional Thermal Balancing Offsets
- Advanced Protection Scheme with Programmable Response and Thresholds
- Internal NVM to Store Customer Configuration
Applications
- Application-Specific ASIC Power
