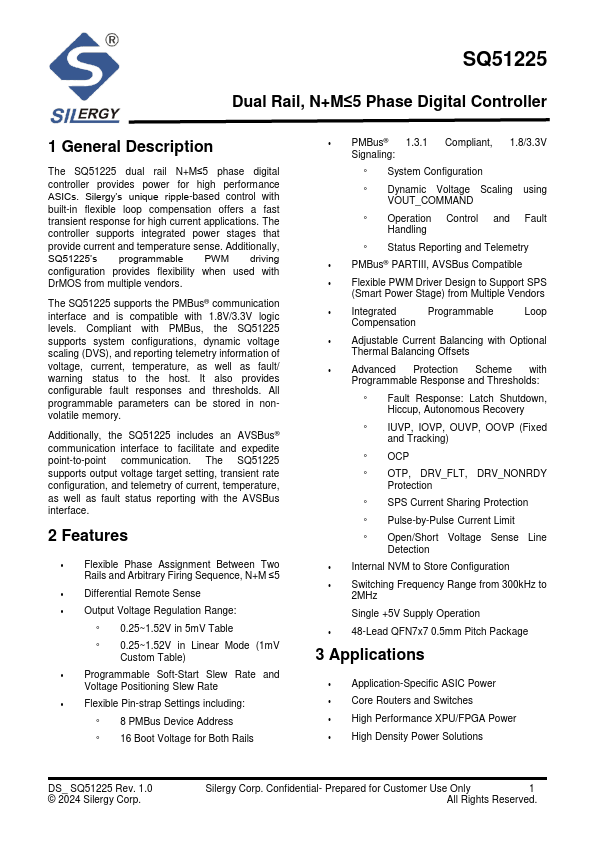

SQ51225
Description
The SQ51225 dual rail N+M≤5 phase digital controller provides power for high performance ASICs.
Key Features
- Flexible Phase Assignment Between Two Rails and Arbitrary Firing Sequence, N+M ≤5
- Differential Remote Sense
- Output Voltage Regulation Range
- Programmable Soft-Start Slew Rate and Voltage Positioning Slew Rate
- Flexible Pin-strap Settings including
- PMBus® 1.3.1 pliant, 1.8/3.3V Signaling
- Flexible PWM Driver Design to Support SPS (Smart Power Stage) from Multiple Vendors
- Adjustable Current Balancing with Optional Thermal Balancing Offsets
- Advanced Protection Scheme with Programmable Response and Thresholds
- Internal NVM to Store Configuration
Applications
- Application-Specific ASIC Power
