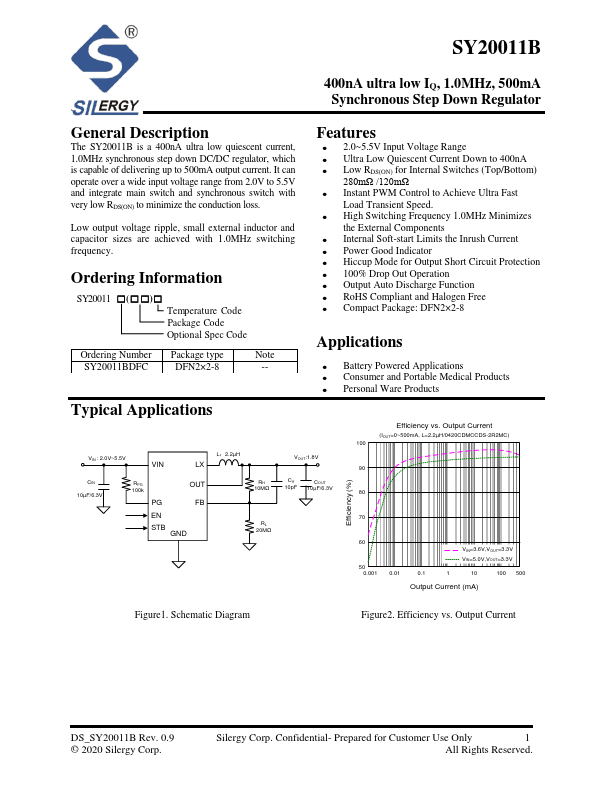

SY20011B
SY20011B is 500mA Synchronous Step Down Regulator manufactured by Silergy.
Description
The SY20011B is a 400n A ultra low quiescent current, 1.0MHz synchronous step down DC/DC regulator, which is capable of delivering up to 500m A output current. It can operate over a wide input voltage range from 2.0V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
Low output voltage ripple, small external inductor and capacitor sizes are achieved with 1.0MHz switching frequency.
Ordering Information
SY20011
- (-
- )- Temperature Code Package Code Optional Spec Code
Ordering Number Package type
Note
SY20011BDFC
DFN2×2-8
--
Features
- 2.0~5.5V Input Voltage Range
- Ultra Low Quiescent Current Down to 400n A
- Low RDS(ON) for Internal Switches (Top/Bottom)
280mΩ /120mΩ
- Instant PWM Control to Achieve Ultra Fast
Load Transient Speed.
- High Switching Frequency 1.0MHz Minimizes the External ponents
- Internal Soft-start Limits the Inrush Current
- Power Good Indicator
- Hiccup Mode for Output Short Circuit Protection
- 100% Drop Out Operation
- Output Auto Discharge Function
- Ro HS pliant and Halogen Free
- pact Package: DFN2×2-8
Applications
- Battery Powered Applications
- Consumer and Portable Medical Products
- Personal Ware Products
Typical Applications
VIN : 2.0V~5.5V
L：2.2µH
CIN 10µF/6.3V
RPG...
