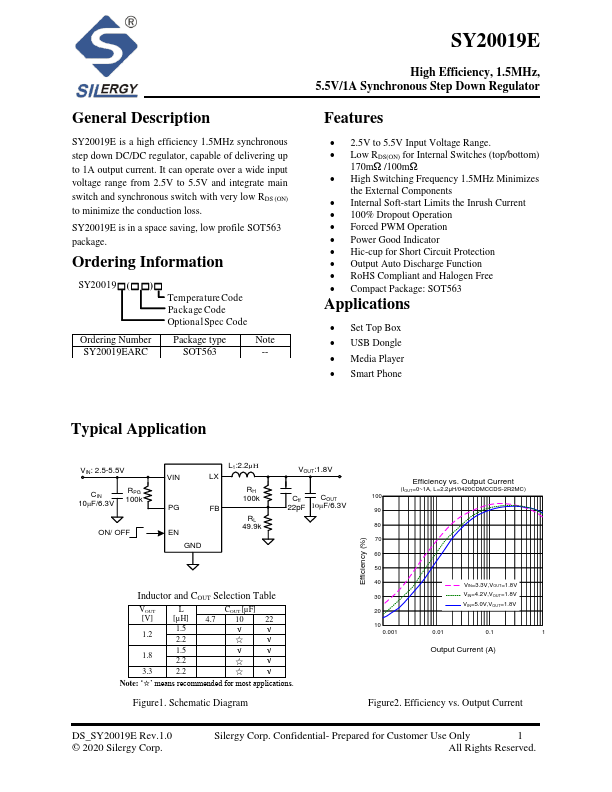

SY20019E
SY20019E is 5.5V/1A Synchronous Step Down Regulator manufactured by Silergy.
Description
SY20019E is a high efficiency 1.5MHz synchronous step down DC/DC regulator, capable of delivering up to 1A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.
SY20019E is in a space saving, low profile SOT563 package.
Ordering Information
SY20019- (-
- )- Tempera ture Code Pa cka ge Code Optional Spec Code
Ordering Number Package type
Note
SY20019EARC
SOT563
--
High Efficiency, 1.5MHz, 5.5V/1A Synchronous Step Down Regulator
Features
- 2.5V to 5.5V Input Voltage Range.
- Low RDS(ON) for Internal Switches (top/bottom)
170mΩ /100mΩ
- High Switching Frequency 1.5MHz Minimizes the External ponents
- Internal Soft-start Limits the Inrush Current
- 100% Dropout Operation
- Forced PWM Operation
- Power Good Indicator
- Hic-cup for Short Circuit Protection
- Output Auto Discharge Function
- Ro HS pliant and Halogen Free
- pact Package: SOT563
Applications
- Set Top Box
- USB Dongle
- Media Player
- Smart Phone
Typical Application
VIN: 2.5-5.5V
CIN 10μF/6.3V
RPG 100k
ON/ OFF
L1:2.2µH
RH...
