SY20053 Datasheet | Silergy

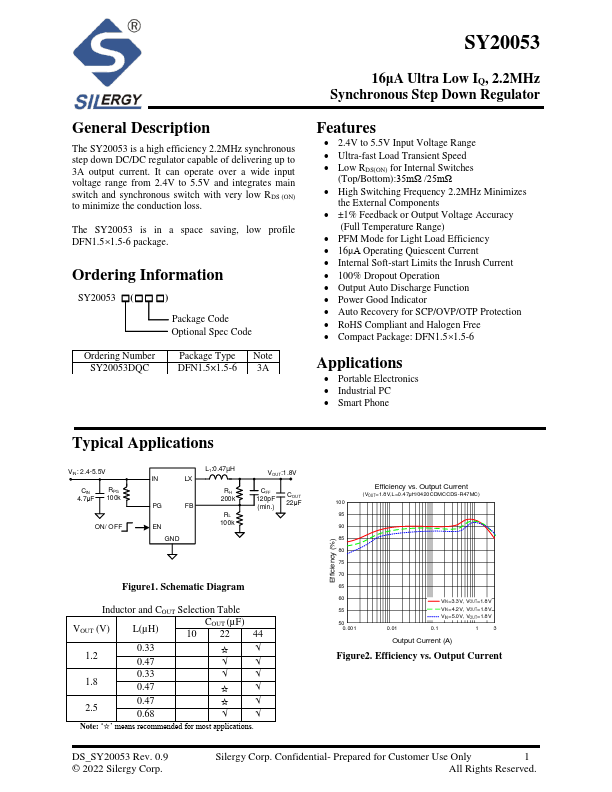

Description The SY20053 is a high efficiency 2.2MHz synchronous step down DC/DC regulator capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.4V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. The SY20053 is in a space saving, low profile DFN1.51.5-6 package. Ordering Information - (- - - ) Package Code Optional Spec Code Ordering Number SY20053DQC Package Type Note DFN1.5×1.5-6 3A Features - 2.4V to 5.5V Input Voltage Range - Ultra-fast Load Transient Speed - Low RDS(ON) for Internal Switches (Top/Bottom):35mΩ /25mΩ - High Switching Frequency 2.2MHz Minimizes the External ponents - ±1% Feedback or Output Voltage Accuracy (Full Temperature Range) - PFM Mode for Light Load Efficiency - 16μA Operating Quiescent Current - Internal Soft-start Limits the Inrush Current - 100% Dropout Operation - Output Auto Discharge Function - Power Good Indicator - Auto Recovery for SCP/OVP/OTP Protection - Ro HS pliant and Halogen Free - pact Package: DFN1.51.5-6 Applications - Portable Electronics - Industrial PC - Smart Phone Typical Applications VIN: 2.4-5.5V CIN 4. 7μF RPG 100k ON/ OFF EN...
