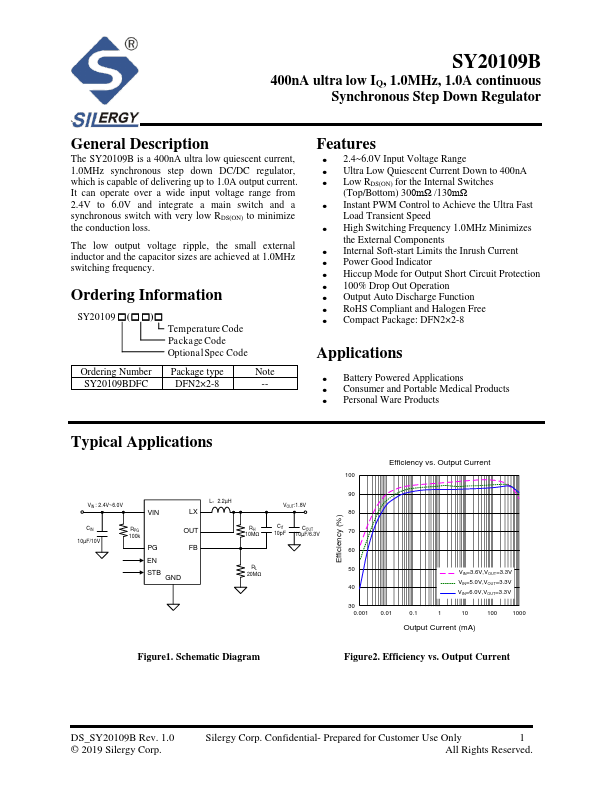

Description The SY20109B is a 400n A ultra low quiescent current, 1.0MHz synchronous step down DC/DC regulator, which is capable of delivering up to 1.0A output current. It can operate over a wide input voltage range from 2.4V to 6.0V and integrate a main switch and a synchronous switch with very low RDS(ON) to minimize the conduction loss. The low output voltage ripple, the small external inductor and the capacitor sizes are achieved at 1.0MHz switching frequency. Ordering Information SY20109 - (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SY20109BDFC DFN2×2-8 -- Features - 2.4~6.0V Input Voltage Range - Ultra Low Quiescent Current Down to 400n A - Low RDS(ON) for the Internal Switches (Top/Bottom) 300mΩ /130mΩ - Instant PWM Control to Achieve the Ultra Fast Load Transient Speed - High Switching Frequency 1.0MHz Minimizes the External ponents - Internal Soft-start Limits the Inrush Current - Power Good Indicator - Hiccup Mode for Output Short Circuit Protection - 100% Drop Out Operation - Output Auto Discharge Function - Ro HS pliant and Halogen Free - pact Package: DFN2×2-8 Applications - Battery Powered Applications - Consumer and Portable Medical Products - Personal Ware Products Typical Applications VIN : 2.4V~6.0V L：2.2µH CIN 10µF/10V RPG...
