SY20108 Datasheet | Silergy

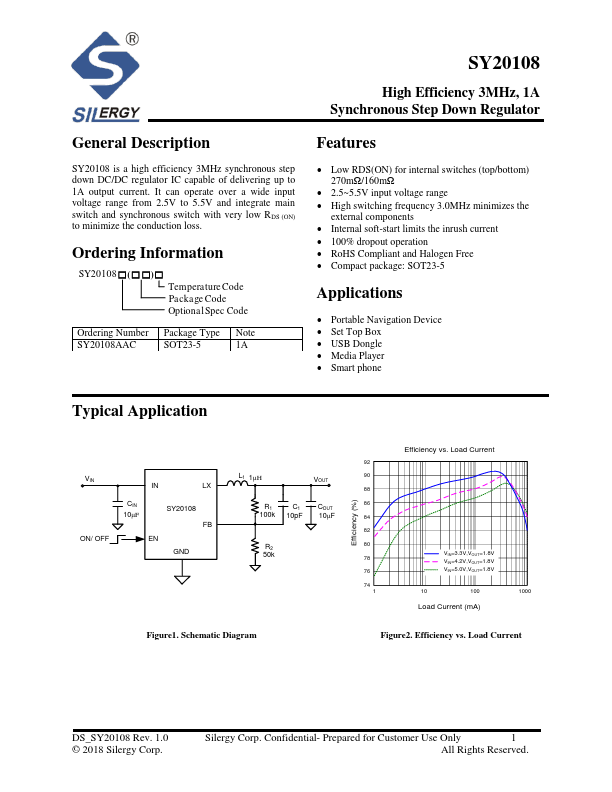

Description SY20108 is a high efficiency 3MHz synchronous step down DC/DC regulator IC capable of delivering up to 1A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. Ordering Information SY20108- (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package Type Note SY20108AAC SOT23-5 1A Features - Low RDS(ON) for internal switches (top/bottom) 270mΩ/160mΩ - 2.5~5.5V input voltage range - High switching frequency 3.0MHz minimizes the external ponents - Internal soft-start limits the inrush current - 100% dropout operation - Ro HS pliant and Halogen Free - pact package: SOT23-5 Applications - Portable Navigation Device - Set Top Box - USB Dongle - Media Player - Smart phone Typical Application VIN ON/ OFF CIN 10μF SY20108 FB L1 1μH VOUT R1 C1 100k 10p F COUT 10μF R2 50k Figure1. Schematic Diagram Efficiency...
