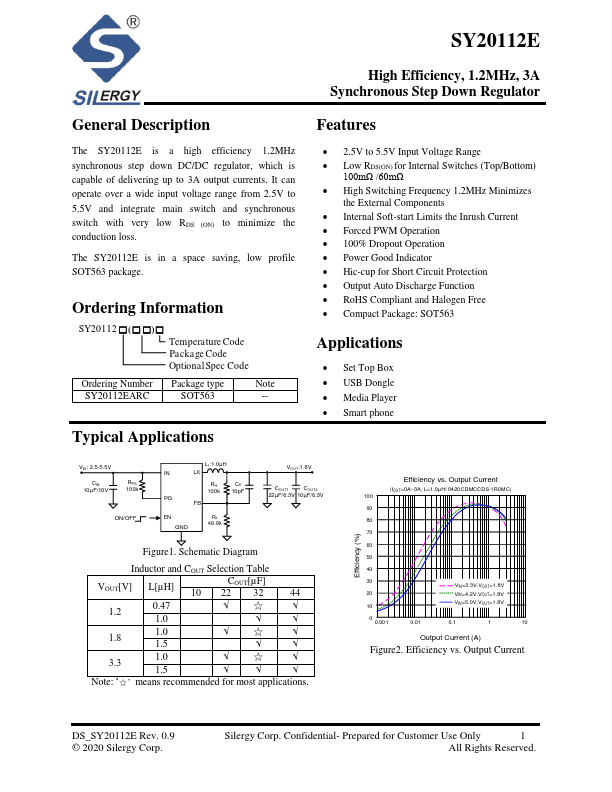

SY20112E
SY20112E is 3A Synchronous Step Down Regulator manufactured by Silergy.
Description
The SY20112E is a high efficiency 1.2MHz synchronous step down DC/DC regulator, which is capable of delivering up to 3A output currents. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss.
The SY20112E is in a space saving, low profile SOT563 package.
Ordering Information
SY20112
- (-
- )- Tempera ture Code Pa cka ge Code Optional Spec Code
Ordering Number Package type
Note
SY20112EARC
SOT563
--
Typical Applications
High Efficiency, 1.2MHz, 3A Synchronous Step Down Regulator
Features
- 2.5V to 5.5V Input Voltage Range
- Low RDS(ON) for Internal Switches (Top/Bottom)
100mΩ /60mΩ
- High Switching Frequency 1.2MHz Minimizes the External ponents
- Internal Soft-start Limits the Inrush Current
- Forced PWM Operation
- 100% Dropout Operation
- Power Good Indicator
- Hic-cup for Short Circuit Protection
- Output Auto Discharge Function
- Ro HS pliant and Halogen Free
- pact Package: SOT563
Applications
- Set Top Box
- USB Dongle
- Media Player
- Smart phone
VIN: 2.5-5.5V
CIN 10µF/10V
RPG 100k
ON/OFF
L1:1.0µH
RH...
