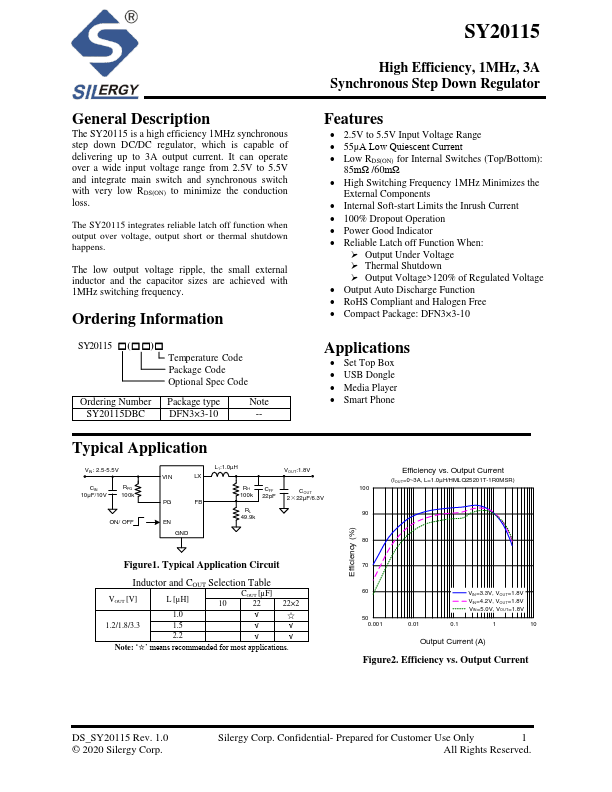

SY20115
SY20115 is 3A Synchronous Step Down Regulator manufactured by Silergy.
Description
The SY20115 is a high efficiency 1MHz synchronous step down DC/DC regulator, which is capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
The SY20115 integrates reliable latch off function when output over voltage, output short or thermal shutdown happens.
The low output voltage ripple, the small external inductor and the capacitor sizes are achieved with 1MHz switching frequency.
Ordering Information
- (-
- )- Temperature Code Package Code Optional Spec Code
Ordering Number Package type
Note
SY20115DBC DFN3×3-10
--
Features
- 2.5V to 5.5V Input Voltage Range
- 55μA Low Quiescent Current
- Low RDS(ON) for Internal Switches (Top/Bottom):
85mΩ /60mΩ
- High Switching Frequency 1MHz Minimizes the
External ponents
- Internal Soft-start Limits the Inrush Current
- 100% Dropout Operation
- Power Good Indicator
- Reliable Latch off Function When:
- Output Under Voltage
- Thermal Shutdown
- Output Voltage>120% of Regulated Voltage
- Output Auto Discharge Function
- Ro HS pliant and Halogen Free
- pact Package: DFN3×3-10
Applications
- Set Top Box
- USB Dongle
- Media Player
- Smart Phone
Typical Application
VIN: 2.5-5.5V
CIN 10μF/10V
RPG 100k
ON/ OFF
VI...
