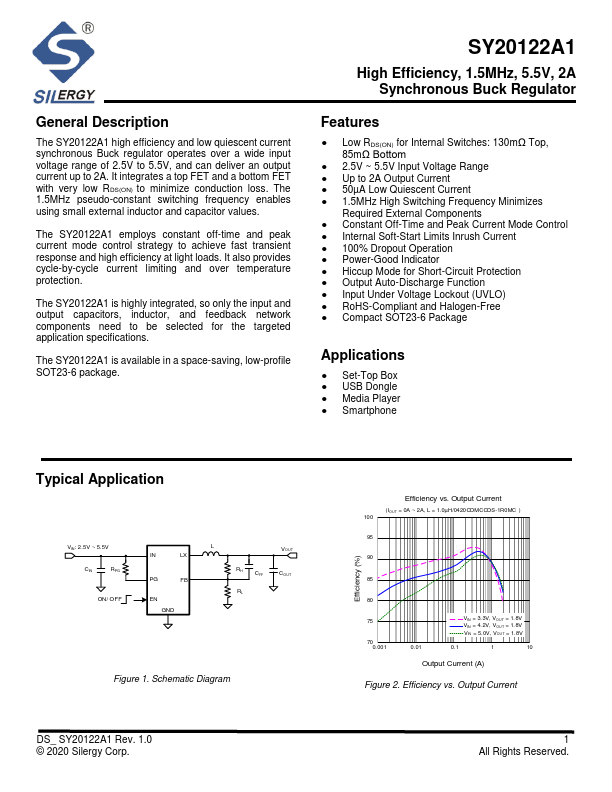

SY20122A1
SY20122A1 is 2A Synchronous Buck Regulator manufactured by Silergy.
Description
The SY20122A1 high efficiency and low quiescent current synchronous Buck regulator operates over a wide input voltage range of 2.5V to 5.5V, and can deliver an output current up to 2A. It integrates a top FET and a bottom FET with very low RDS(ON) to minimize conduction loss. The 1.5MHz pseudo-constant switching frequency enables using small external inductor and capacitor values.
The SY20122A1 employs constant off-time and peak current mode control strategy to achieve fast transient response and high efficiency at light loads. It also provides cycle-by-cycle current limiting and over temperature protection.
The SY20122A1 is highly integrated, so only the input and output capacitors, inductor, and feedback network ponents need to be selected for the targeted application specifications.
The SY20122A1 is available in a space-saving, low-profile SOT23-6 package.
High Efficiency, 1.5MHz, 5.5V, 2A Synchronous Buck Regulator
Features
- Low RDS(ON) for Internal Switches: 130mΩ Top, 85mΩ Bottom
- 2.5V ~ 5.5V Input Voltage Range
- Up to 2A Output Current
- 50µA Low Quiescent Current
- 1.5MHz High Switching Frequency Minimizes
Required External ponents
- Constant Off-Time and Peak Current Mode Control
- Internal Soft-Start Limits Inrush Current
- 100% Dropout Operation
- Power-Good Indicator
- Hiccup Mode for Short-Circuit Protection
- Output Auto-Discharge Function
- Input Under Voltage Lockout (UVLO)
- Ro HS-pliant and Halogen-Free
- pact SOT23-6 Package
Applications
- Set-Top Box
- USB Dongle
- Media Player
- Smartphone
Typical Application
VIN: 2.5V ~ 5. 5V
ON/ OFF
VOUT
EN...
