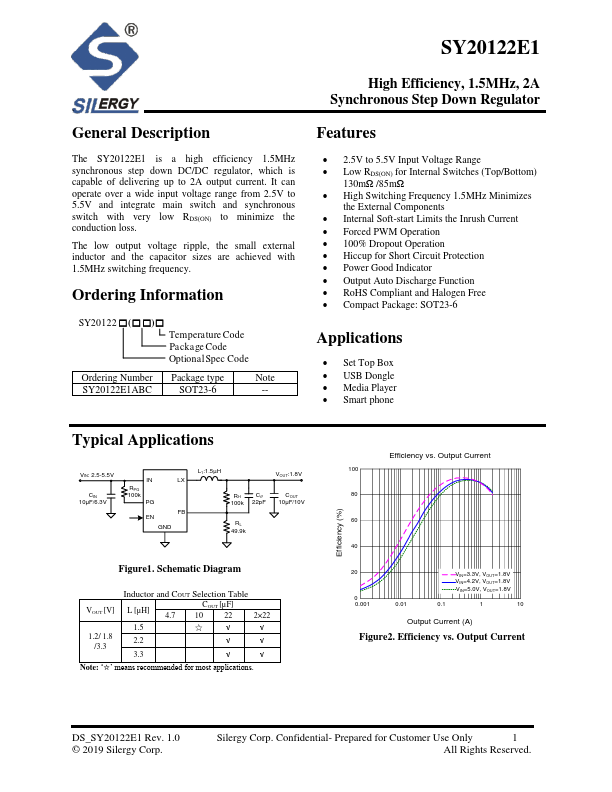

Description The SY20122E1 is a high efficiency 1.5MHz synchronous step down DC/DC regulator, which is capable of delivering up to 2A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The low output voltage ripple, the small external inductor and the capacitor sizes are achieved with 1.5MHz switching frequency. Ordering Information SY20122 - (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note SY20122E1ABC SOT23-6 -- High Efficiency, 1.5MHz, 2A Synchronous Step Down Regulator Features - 2.5V to 5.5V Input Voltage Range - Low RDS(ON) for Internal Switches (Top/Bottom) 130mΩ /85mΩ - High Switching Frequency 1.5MHz Minimizes the External ponents - Internal Soft-start Limits the Inrush Current - Forced PWM Operation - 100% Dropout Operation - Hiccup for Short Circuit Protection - Power Good Indicator - Output Auto Discharge Function - Ro HS pliant and Halogen Free - pact Package: SOT23-6 Applications - Set Top Box - USB Dongle - Media Player - Smart phone Typical Applications VIN: 2.5-5.5V CIN 10μF/6.3V RPG 100k FB...
