SY20235 Datasheet | Silergy

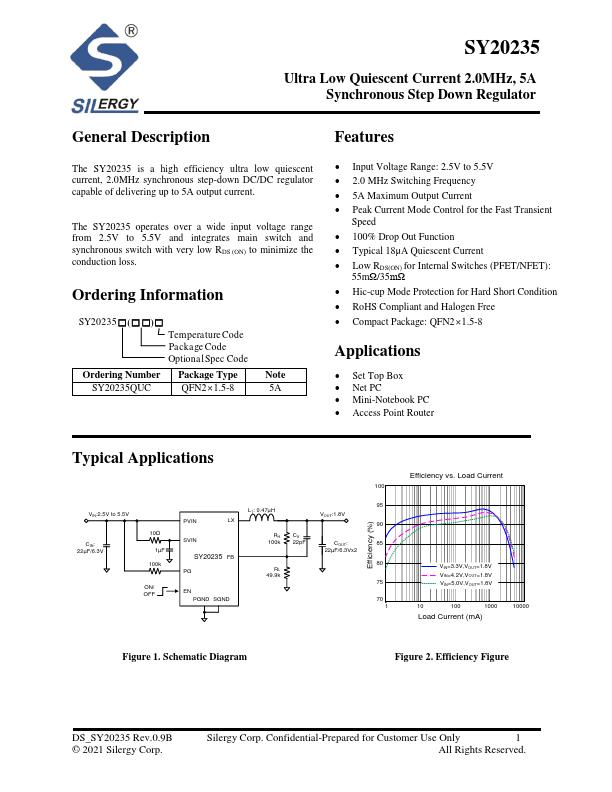

Description Features The SY20235 is a high efficiency ultra low quiescent current, 2.0MHz synchronous step-down DC/DC regulator capable of delivering up to 5A output current. The SY20235 operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. Ordering Information SY20235- (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package Type SY20235QUC QFN21.5-8 Note 5A - Input Voltage Range: 2.5V to 5.5V - 2.0 MHz Switching Frequency - 5A Maximum Output Current - Peak Current Mode Control for the Fast Transient Speed - 100% Drop Out Function - Typical 18μA Quiescent Current - Low RDS(ON) for Internal Switches (PFET/NFET): 55mΩ/35mΩ - Hic-cup Mode Protection for Hard Short Condition - Ro HS pliant and Halogen Free - pact Package: QFN21.5-8 Applications - Set Top Box - Net PC - Mini-Notebook PC - Access Point Router Typical Applications VIN:2.5V to 5.5V CIN: 22µF/6.3V 10Ω 1µF 100k ON/ OFF PVIN SVIN SY20235 FB EN PGND...
