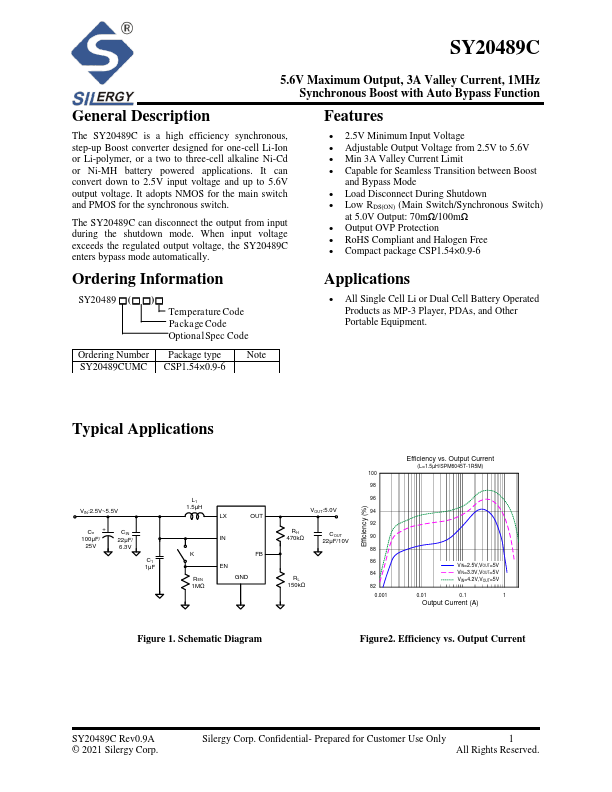

SY20489C
Description
Features
The SY20489C is a high efficiency synchronous, step-up Boost converter designed for one-cell Li-Ion or Li-polymer, or a two to three-cell alkaline Ni-Cd or Ni-MH battery powered applications. It can convert down to 2.5V input voltage and up to 5.6V output voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch.
The SY20489C can disconnect the output from input during the shutdown mode. When input voltage exceeds the regulated output voltage, the SY20489C enters bypass mode automatically.
- 2.5V Minimum Input Voltage
- Adjustable Output Voltage from 2.5V to 5.6V
- Min 3A Valley Current Limit
- Capable for Seamless Transition between Boost and Bypass Mode
- Load Disconnect During Shutdown
- Low RDS(ON) (Main Switch/Synchronous Switch) at 5.0V Output: 70mΩ/100mΩ
- Output OVP Protection
- Ro HS pliant and Halogen Free
- pact package CSP1.54×0.9-6
Ordering Information
Applications
SY20489
- (-
- )- Tempera ture Code Pa cka ge Code Optional...
