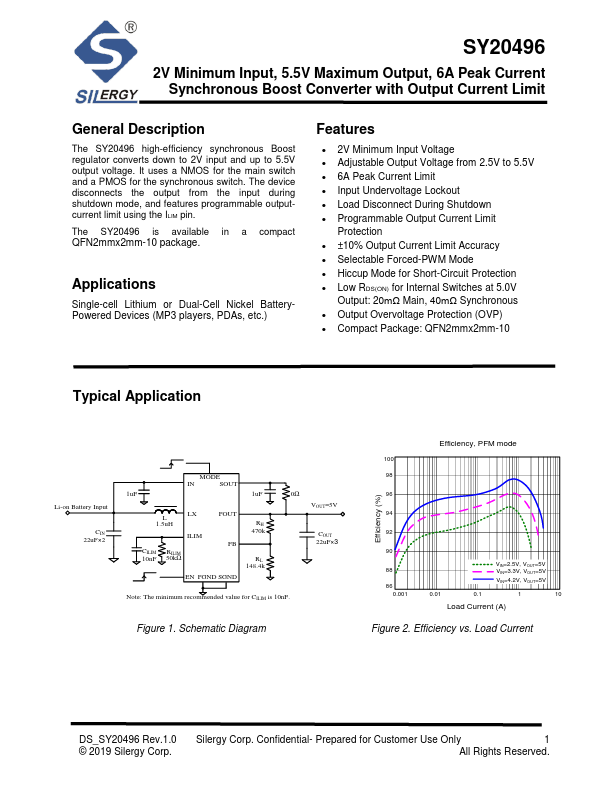

SY20496
Description
The SY20496 high-efficiency synchronous Boost regulator converts down to 2V input and up to 5.5V output voltage. It uses a NMOS for the main switch and a PMOS for the synchronous switch. The device disconnects the output from the input during shutdown mode, and features programmable outputcurrent limit using the ILIM pin.
The SY20496 is available in a pact QFN2mmx2mm-10 package.
Applications
Single-cell Lithium or Dual-Cell Nickel Battery Powered Devices (MP3 players, PDAs, etc.)
Features
- 2V Minimum Input Voltage
- Adjustable Output Voltage from 2.5V to 5.5V
- 6A Peak Current Limit
- Input Undervoltage Lockout
- Load Disconnect During Shutdown
- Programmable Output Current Limit
Protection
- ±10% Output Current Limit Accuracy
- Selectable Forced-PWM Mode
- Hiccup Mode for Short-Circuit Protection
- Low RDS(ON) for Internal Switches at 5.0V
Output: 20mΩ Main, 40mΩ Synchronous
- Output Overvoltage Protection (OVP)
- pact Package: QFN2mmx2mm-10
Typical Application
Li-on...
