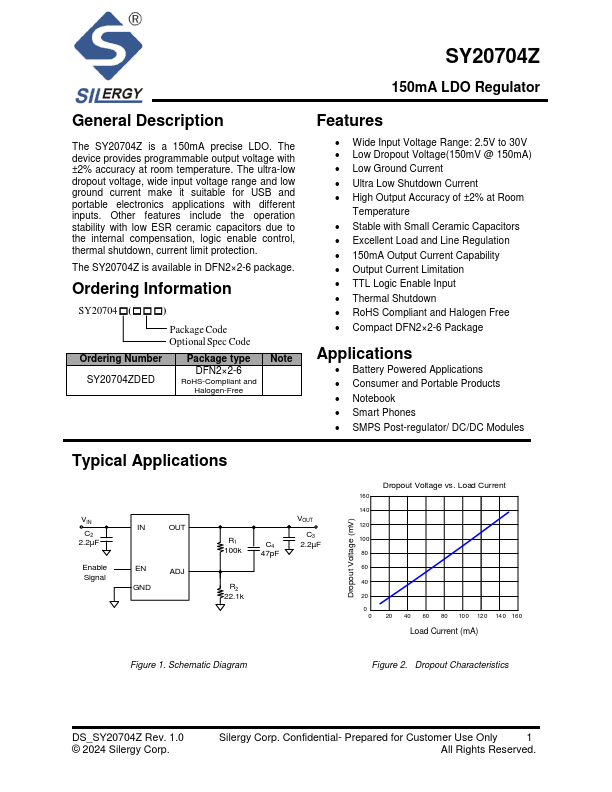

SY20704Z
Description
The SY20704Z is a 150m A precise LDO. The device provides programmable output voltage with ±2% accuracy at room temperature. The ultra-low dropout voltage, wide input voltage range and low ground current make it suitable for USB and portable electronics applications with different inputs. Other features include the operation stability with low ESR ceramic capacitors due to the internal pensation, logic enable control, thermal shutdown, current limit protection.
The SY20704Z is available in DFN2×2-6 package.
Ordering Information
SY20704
- (-
- - )
Package Code Optional Spec Code
Ordering Number SY20704ZDED
Package type
DFN2×2-6
Ro HS-pliant and Halogen-Free
Note
Features
- Wide Input Voltage Range: 2.5V to 30V
- Low Dropout Voltage(150m V @ 150m A)
- Low Ground Current
- Ultra Low Shutdown Current
- High Output Accuracy of ±2% at Room
Temperature
- Stable with Small Ceramic Capacitors
- Excellent Load and Line Regulation
- 150m A Output Current Capability
- Output Current...
