SY20728 - 3A Fast-Response LDO Regulator

Datasheet Summary

Description

The SY20728 is a high-voltage, low-dropout LDO regulator with a 3A current capacity.

Features

  • fast recovery from input voltage surges and output load current changes. The SY20728 provides protection features, including overcurrent limit, output short protection, and over-temperature protection, enabling the part to be used in demanding.

📥 Download Datasheet

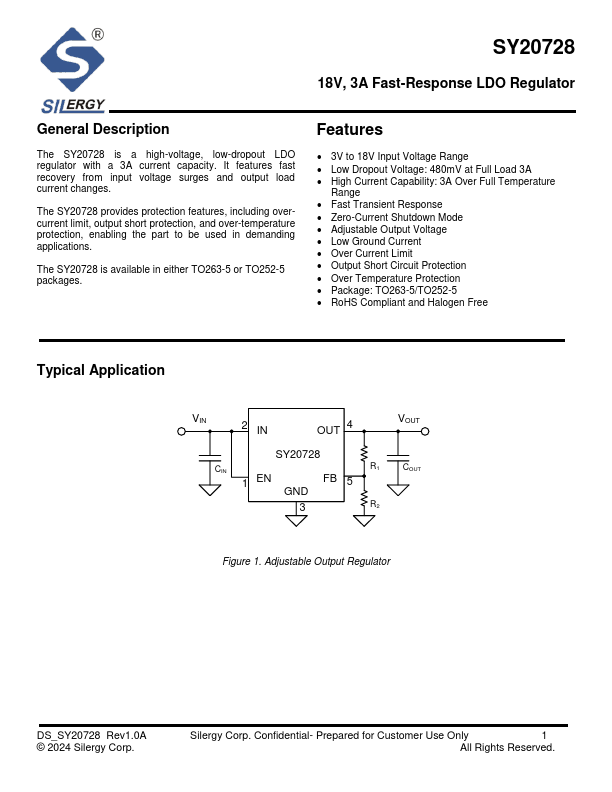

Datasheet preview – SY20728

Datasheet Details

Part number SY20728
Manufacturer Silergy
File Size 811.41 KB
Description 3A Fast-Response LDO Regulator
Datasheet download datasheet SY20728 Datasheet

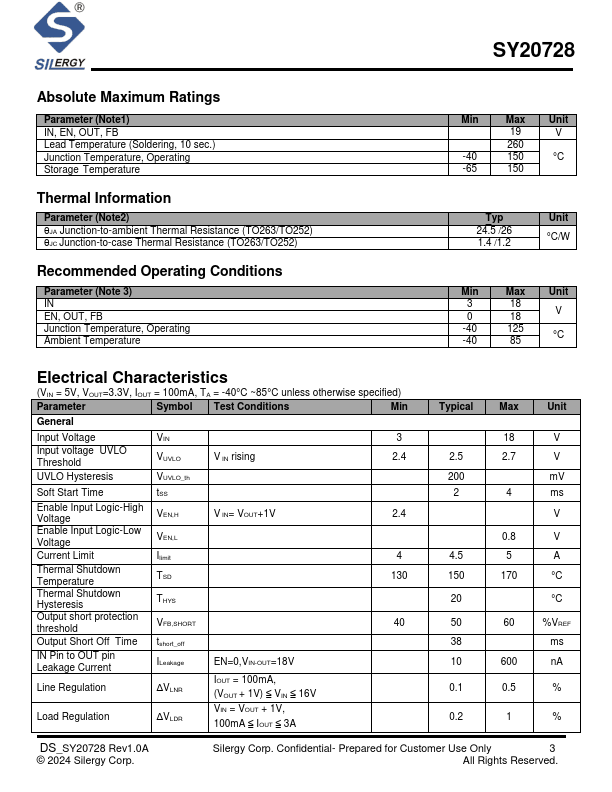

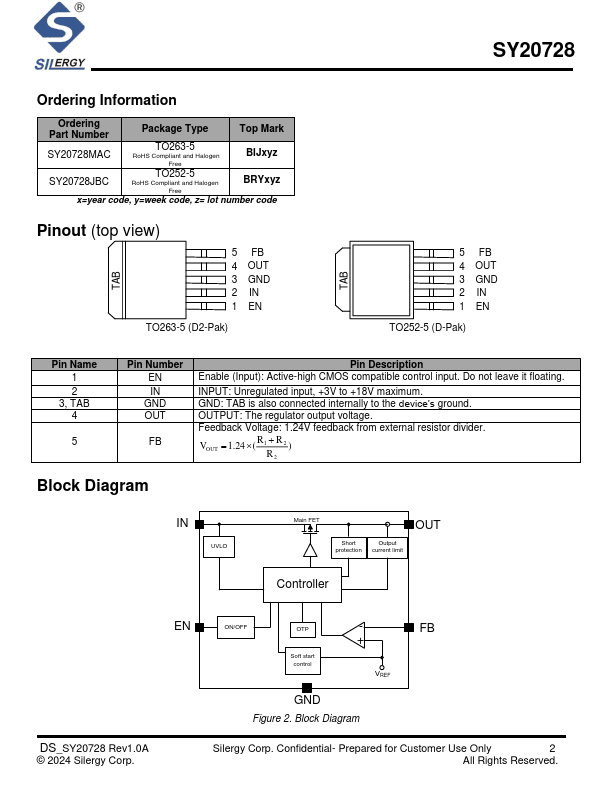

Additional preview pages of the SY20728 datasheet.

📁 Similar Datasheet

  • SY20 - 10 WATT VOLTAGE REGULATOR (Semtech Corporation)
  • SY2128 - 2048 x 8 Static RAM (Synertek)
  • SY2158 - 1024 x 8 Static RAM (Synertek)
  • SY22 - 10 WATT VOLTAGE REGULATOR (Semtech Corporation)
  • SY2305 - P-Channel logic enhancement mode power field effect transistors (SANY)
  • SY2332 - High Brightness Chip LED Lamp (AUK)
  • SY2333 - Chip LED (AUK)
  • SY2336-E - High Brightness Chip LED (AUK)
  • SY24 - 10 WATT VOLTAGE REGULATOR (Semtech Corporation)
  • SY27 - 10 WATT VOLTAGE REGULATOR (Semtech Corporation)
Other Datasheets by Silergy
  • SY20725 - 300mA LDO Regulator
  • SY20704 - 150mA LDO Regulator
  • SY20743 - Single Cell Li-Ion DC/DC Switching Charger
  • SY20743B - Single Cell Li-Ion DC/DC Switching Charger
  • SY20743C - Single Cell Li-Ion DC/DC Switching Charger
  • SY20754 - Bi-Directional Regulator
  • SY20011 - 1MHz Synchronous Buck Converter
  • SY20018I - 1A Synchronous Step-Down Regulator

Full PDF Text Transcription

Click to expand full text
SY20728 18V, 3A Fast-Response LDO Regulator General Description The SY20728 is a high-voltage, low-dropout LDO regulator with a 3A current capacity. It features fast recovery from input voltage surges and output load current changes. The SY20728 provides protection features, including overcurrent limit, output short protection, and over-temperature protection, enabling the part to be used in demanding applications. The SY20728 is available in either TO263-5 or TO252-5 packages.
