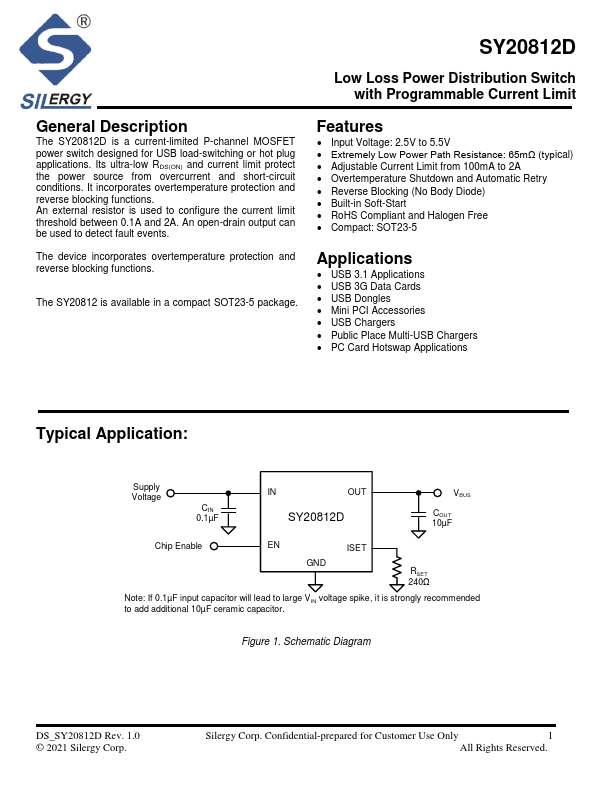

Silergy SY20812D
The SY20812D is a current-limited P-channel MOSFET power switch designed for USB load-switching or hot plug applications. Its ultra-low RDS(ON) and current limit protect the power source from overcurrent and short-circuit conditions. It incorporates overtemperature protection and reverse blocking functions.| Part No. | SY20812D |
|---|---|
| Datasheet | SY20812D Download |
| Manufacturer |  Silergy |
| Description | Low Loss Power Distribution Switch |
| Buy | Stock & Price |
GENERAL DESCRIPTION
An external resistor is used to configure the current limit threshold between 0.1A and 2A. An open-drain output can be used to detect fault events. The device incorporates overtemperature protection and reverse blocking functions. The SY20812 is available in a compact SOT23-5 package.FEATURES
● Input Voltage: 2.5V to 5.5V● Extremely Low Power Path Resistance: 65mΩ (typical)
● Adjustable Current Limit from 100mA to 2A
● Overtemperature Shutdown and Automatic Retry
● Reverse Blocking (No Body Diode)
● Built-in Soft-Start
● RoHS Compliant and Halogen Free
● Compact: SOT23-5
APPLICATIONS
● USB 3.1APPLICATIONS
● USB 3G Data Cards● USB Dongles
● Mini PCI Accessories
● USB Chargers
● Public Place Multi-USB Chargers
● PC Card Hotswap
APPLICATIONS
Typical Application: Supply Voltage CIN 0.1µF IN OUT SY20812D VBUS COUT 10µF Chip Enable EN ISET GND RSET 240Ω Note: If 0.1µF input capacitor will lead to large VIN voltage spike, it is strongly recommended to add additional 10µF ceramic capacitor.
