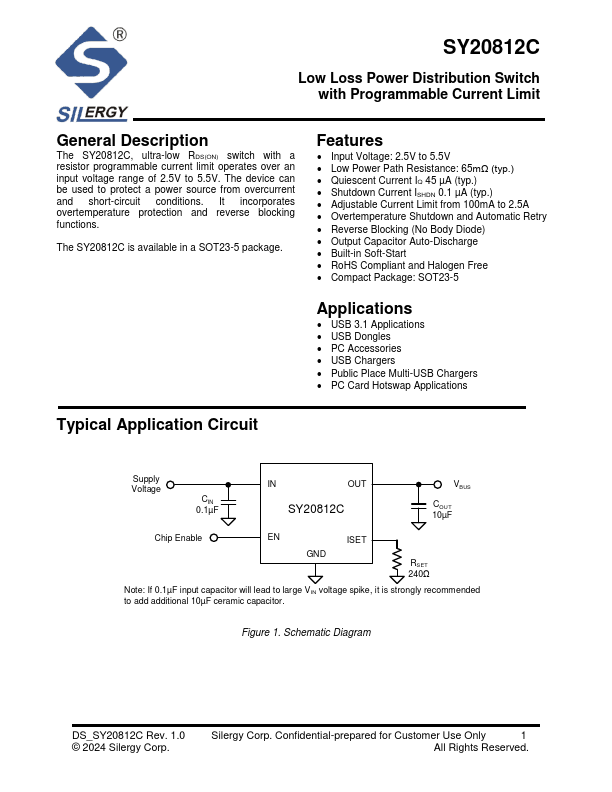

SY20812C Overview
Description
The SY20812C, ultra-low RDS(ON) switch with a resistor programmable current limit operates over an input voltage range of 2.5V to 5.5V. The device can be used to protect a power source from overcurrent and short-circuit conditions.
Key Features
- Input Voltage: 2.5V to 5.5V
- Low Power Path Resistance: 65mΩ (typ.)
- Quiescent Current IQ 45 µA (typ.)
- Shutdown Current ISHDN 0.1 µA (typ.)
- Adjustable Current Limit from 100mA to 2.5A
