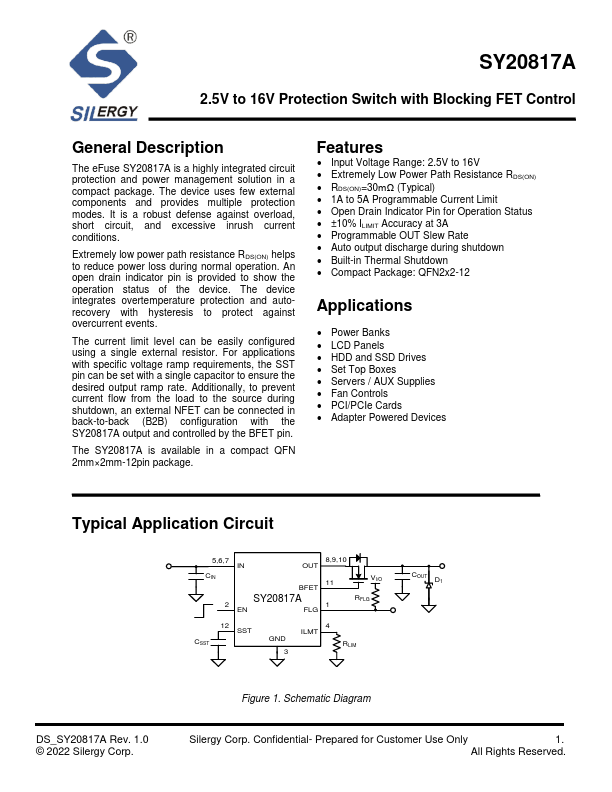

SY20817A
Description
The eFuse SY20817A is a highly integrated circuit protection and power management solution in a pact package.
Key Features
- Input Voltage Range: 2.5V to 16V
- Extremely Low Power Path Resistance RDS(ON)
- RDS(ON)=30mΩ (Typical)
- 1A to 5A Programmable Current Limit
- Open Drain Indicator Pin for Operation Status
- ±10% ILIMIT Accuracy at 3A
- Programmable OUT Slew Rate
- Auto output discharge during shutdown
- Built-in Thermal Shutdown
- pact Package: QFN2x2-12
Applications
- Power Banks
