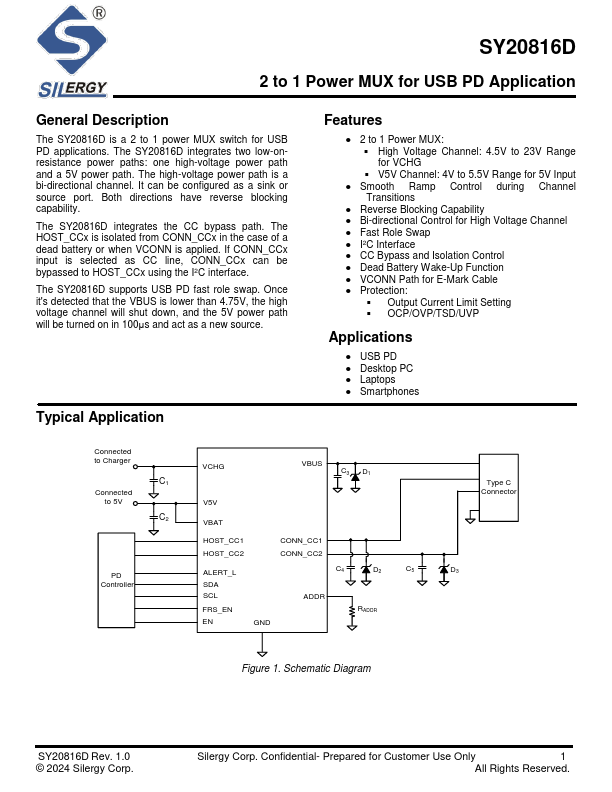

SY20816D Overview
Description
The SY20816D is a 2 to 1 power MUX switch for USB PD applications. The SY20816D integrates two low-onresistance power paths: one high-voltage power path and a 5V power path.
Key Features
- 2 to 1 Power MUX
- High Voltage Channel: 4.5V to 23V Range for VCHG
- V5V Channel: 4V to 5.5V Range for 5V Input
- Smooth Ramp Control during Channel Transitions
- Reverse Blocking Capability
