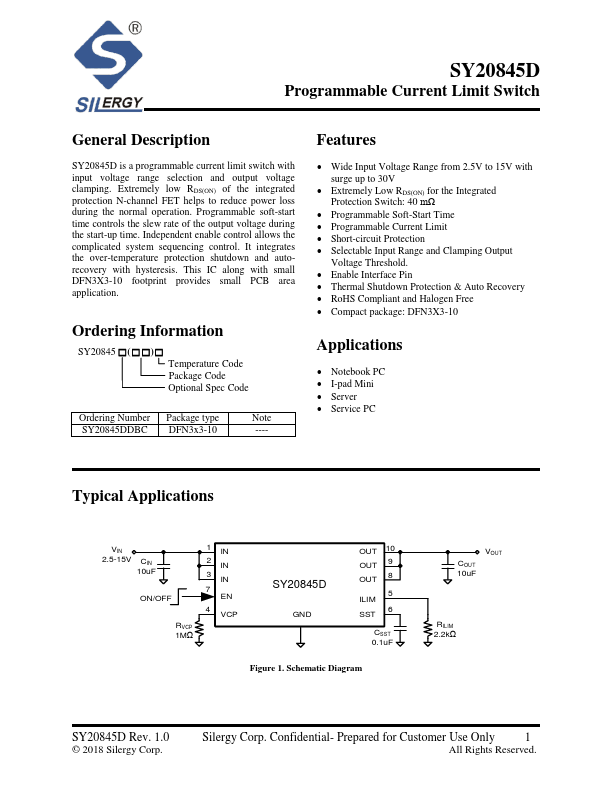

SY20845D
Description
SY20845D is a programmable current limit switch with input voltage range selection and output voltage clamping.
Key Features
- Wide Input Voltage Range from 2.5V to 15V with surge up to 30V
- Extremely Low RDS(ON) for the Integrated Protection Switch: 40 mΩ
- Programmable Soft-Start Time
- Programmable Current Limit
- Short-circuit Protection
- Selectable Input Range and Clamping Output
- Enable Interface Pin
- Thermal Shutdown Protection & Auto Recovery
- RoHS pliant and Halogen Free
- pact package: DFN3X3-10
Applications
- Notebook PC
