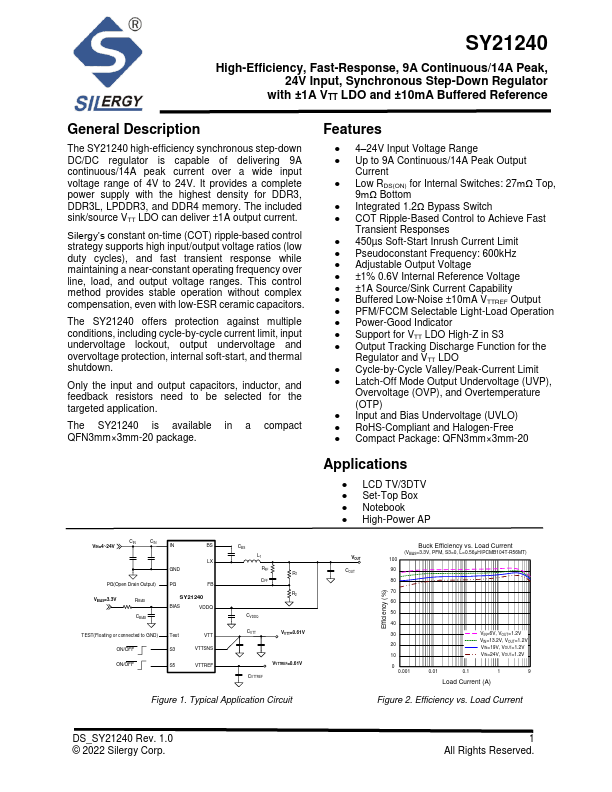

SY21240
Description
The SY21240 high-efficiency synchronous step-down DC/DC regulator is capable of delivering 9A continuous/14A peak current over a wide input voltage range of 4V to 24V. It provides a plete power supply with the highest density for DDR3, DDR3L, LPDDR3, and DDR4 memory.
Key Features
- 4–24V Input Voltage Range
- Up to 9A Continuous/14A Peak Output Current
- Low RDS(ON) for Internal Switches: 27mΩ Top, 9mΩ Bottom
- Integrated 1.2Ω Bypass Switch
- COT Ripple-Based Control to Achieve Fast Transient Responses
- 450µs Soft-Start Inrush Current Limit
- Pseudoconstant Frequency: 600kHz
- Adjustable Output Voltage
- ±1% 0.6V Internal Reference Voltage
- ±1A Source/Sink Current Capability
