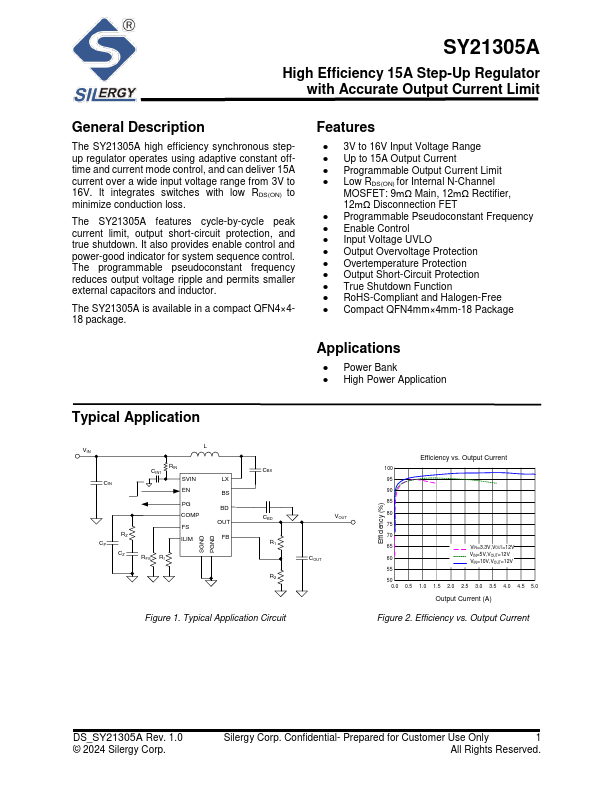

SY21305A
Description
The SY21305A high efficiency synchronous stepup regulator operates using adaptive constant offtime and current mode control, and can deliver 15A current over a wide input voltage range from 3V to 16V. It integrates switches with low RDS(ON) to minimize conduction loss.
The SY21305A features cycle-by-cycle peak current limit, output short-circuit protection, and true shutdown. It also provides enable control and power-good indicator for system sequence control. The programmable pseudoconstant frequency reduces output voltage ripple and permits smaller external capacitors and inductor.
The SY21305A is available in a pact QFN4×418 package.
Features
- 3V to 16V Input Voltage Range
- Up to 15A Output Current
- Programmable Output Current Limit
- Low RDS(ON) for Internal N-Channel
MOSFET: 9mΩ Main, 12mΩ Rectifier, 12mΩ Disconnection FET
- Programmable Pseudoconstant Frequency
- Enable Control
- Input Voltage UVLO
- Output Overvoltage Protection
- Overtemperature Protection
-...
