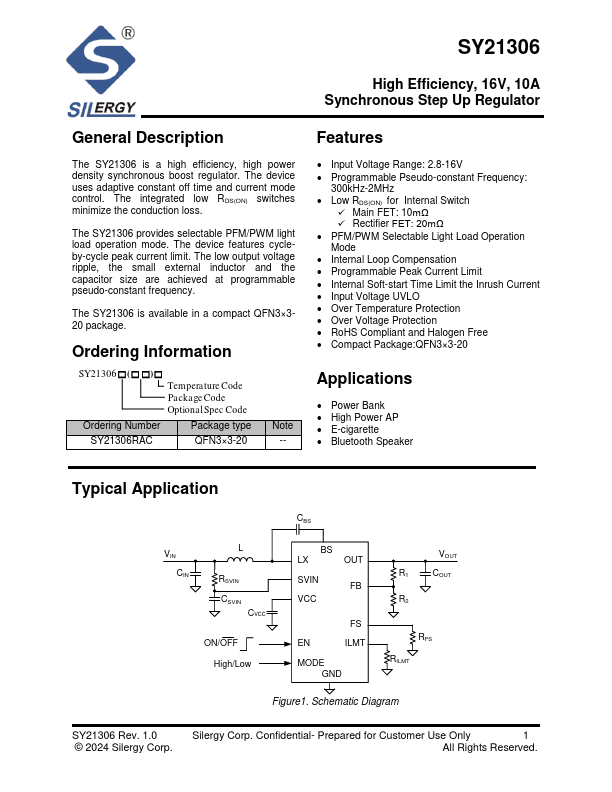

SY21306
Description
The SY21306 is a high efficiency, high power density synchronous boost regulator. The device uses adaptive constant off time and current mode control. The integrated low RDS(ON) switches minimize the conduction loss.
The SY21306 provides selectable PFM/PWM light load operation mode. The device features cycleby-cycle peak current limit. The low output voltage ripple, the small external inductor and the capacitor size are achieved at programmable pseudo-constant frequency.
The SY21306 is available in a pact QFN3×320 package.
Ordering Information
SY21306- (-
- )- Tempera ture Code Pa cka ge Code Optional Spec Code
Ordering Number
Package type
SY21306RAC
QFN3×3-20
Note --
Features
- Input Voltage Range: 2.8-16V
- Programmable Pseudo-constant Frequency:
300k Hz-2MHz
- Low RDS(ON) for Internal Switch
- Main FET: 10mΩ
- Rectifier FET: 20mΩ
- PFM/PWM Selectable Light Load Operation Mode
- Internal Loop pensation
- Programmable Peak Current Limit
- Internal Soft-start Time...
