SY26012 Datasheet | Silergy

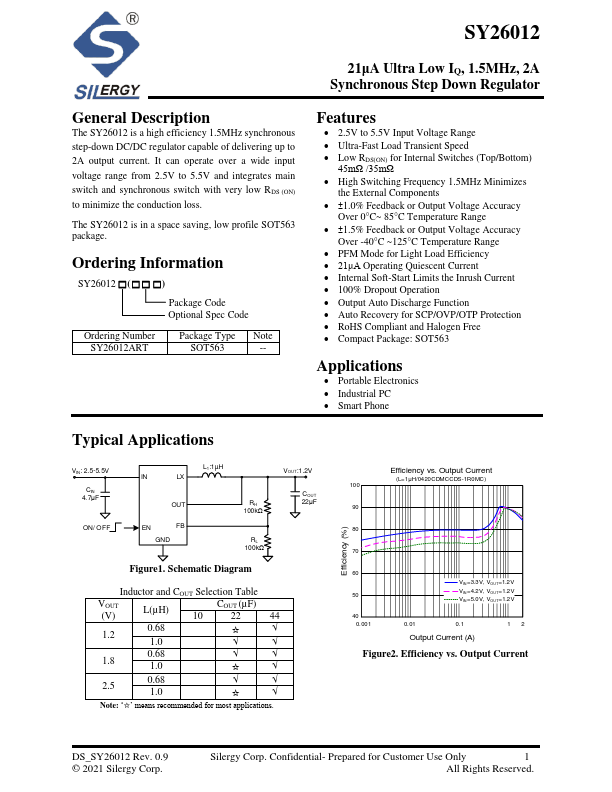

21μA Ultra Low IQ, 1.5MHz, 2A Synchronous Step Down Regulator General Description The SY26012 is a high efficiency 1.5MHz synchronous step-down DC/DC regulator capable of delivering up to 2A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. The SY26012 is in a space saving, low profile SOT563 package. Ordering Information - (- - - ) Package Code Optional Spec Code Ordering Number SY26012ART Package Type Note SOT563 -- Features - 2.5V to 5.5V Input Voltage Range - Ultra-Fast Load Transient Speed - Low RDS(ON) for Internal Switches (Top/Bottom) 45mΩ /35mΩ - High Switching Frequency 1.5MHz Minimizes the External ponents - ±1.0% Feedback or Output Voltage Accuracy Over 0°C~ 85°C Temperature Range - ±1.5% Feedback or Output Voltage Accuracy Over -40°C ~125°C Temperature Range - PFM Mode for Light Load Efficiency - 21μA Operating Quiescent Current - Internal Soft-Start Limits the Inrush Current - 100% Dropout Operation - Output Auto Discharge Function - Auto Recovery for SCP/OVP/OTP Protection - RoHS pliant and Halogen Free - pact Package:...
