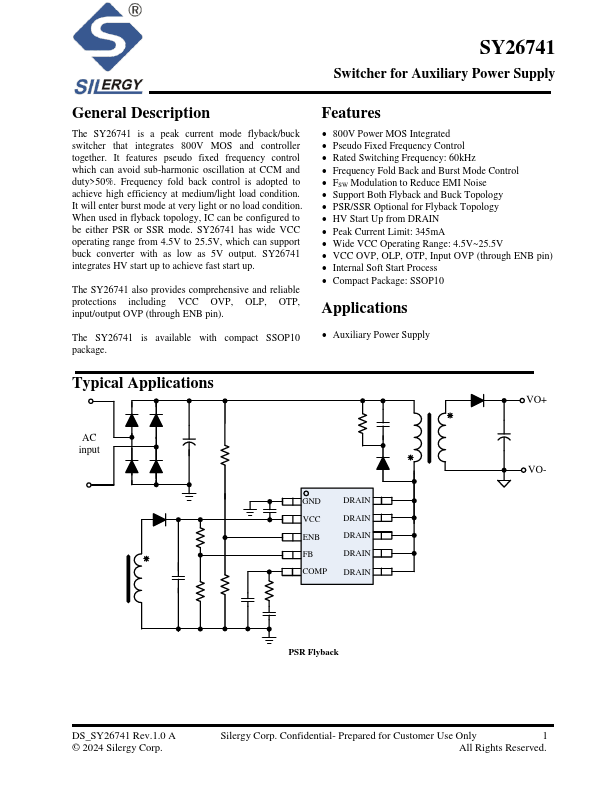

SY26741 Overview
Description
The SY26741 is a peak current mode flyback/buck switcher that integrates 800V MOS and controller together. It features pseudo fixed frequency control which can avoid sub-harmonic oscillation at CCM and duty>50%.
Key Features
- 800V Power MOS Integrated
- Pseudo Fixed Frequency Control
- Rated Switching Frequency: 60kHz
- Frequency Fold Back and Burst Mode Control
- FSW Modulation to Reduce EMI Noise
