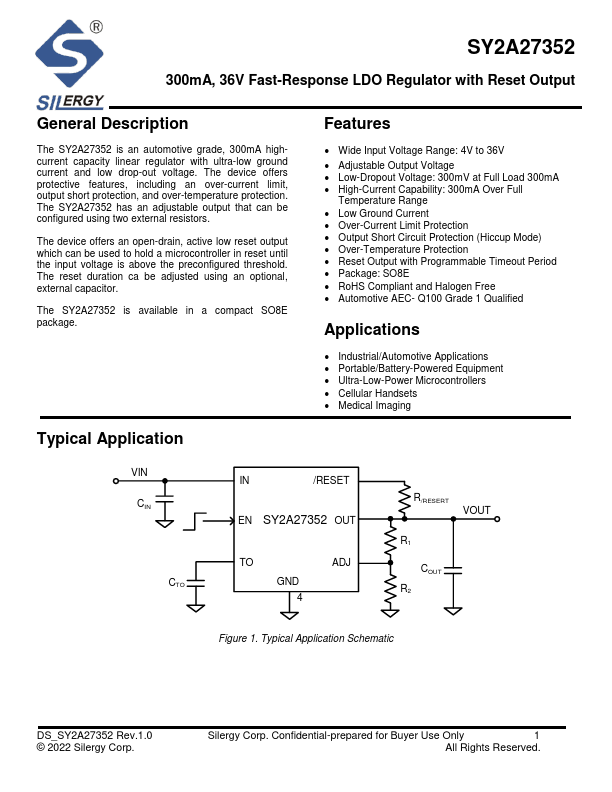

SY2A27352
Description
The SY2A27352 is an automotive grade, 300m A highcurrent capacity linear regulator with ultra-low ground current and low drop-out voltage. The device offers protective features
, including an over-current limit, output short protection, and over-temperature protection. The SY2A27352 has an adjustable output that can be configured using two external resistors.
The device offers an open-drain, active low reset output which can be used to hold a microcontroller in reset until the input voltage is above the preconfigured threshold. The reset duration ca be adjusted using an optional, external capacitor.
The SY2A27352 is available in a pact SO8E package.
Features
- Wide Input Voltage Range: 4V to 36V
- Adjustable Output Voltage
- Low-Dropout Voltage: 300m V at Full Load 300m A
- High-Current Capability: 300m A Over Full
Temperature Range
- Low Ground Current
- Over-Current Limit Protection
- Output Short Circuit Protection (Hiccup Mode)
- Over-Temperature Protection
- Reset Output...
