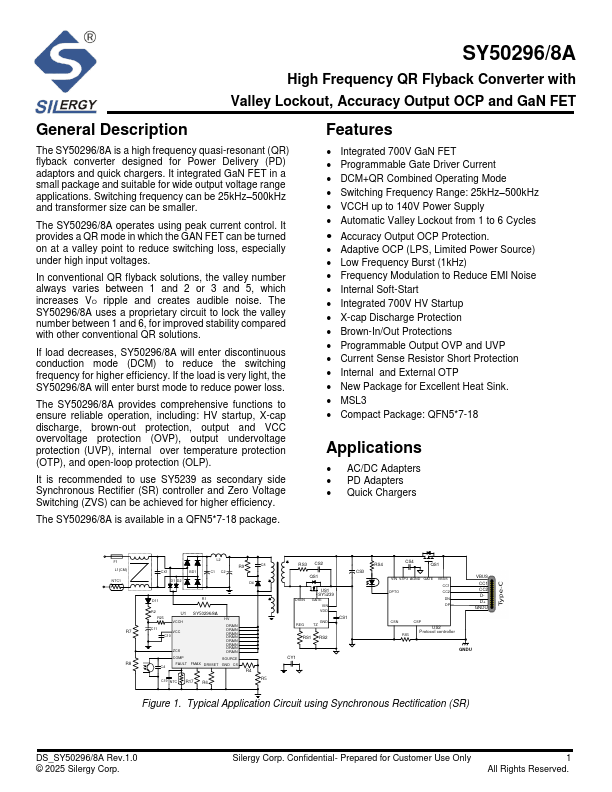

SY50296A Overview
Description
The SY50296/8A is a high frequency quasi-resonant (QR) flyback converter designed for Power Delivery (PD) adaptors and quick chargers. It integrated GaN FET in a small package and suitable for wide output voltage range applications.
Key Features
- Integrated 700V GaN FET
- Programmable Gate Driver Current
- DCM+QR Combined Operating Mode
- Switching Frequency Range: 25kHz–500kHz
- VCCH up to 140V Power Supply
