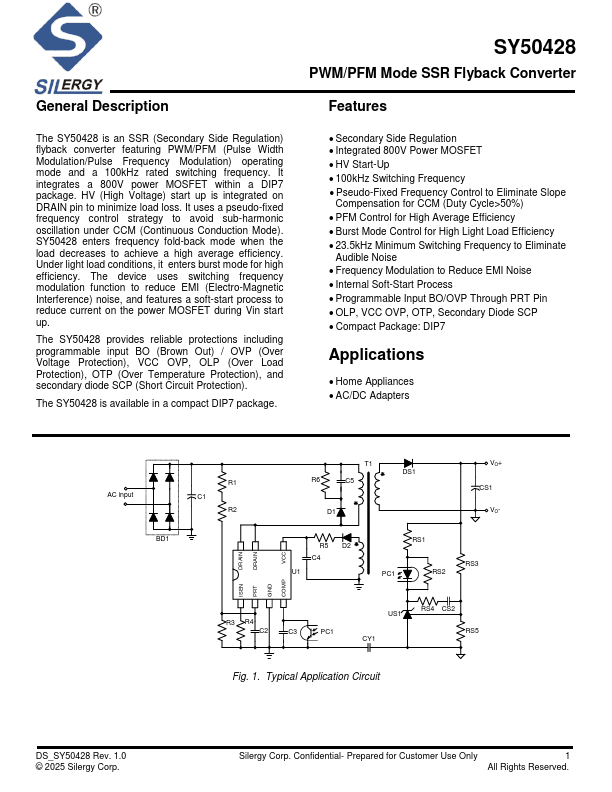

SY50428 Overview
Description
The SY50428 is an SSR (Secondary Side Regulation) flyback converter featuring PWM/PFM (Pulse Width Modulation/Pulse Frequency Modulation) operating mode and a 100kHz rated switching frequency. It integrates a 800V power MOSFET within a DIP7 package.
Key Features
- Secondary Side Regulation
- Integrated 800V Power MOSFET
- HV Start-Up
- 100kHz Switching Frequency
- Pseudo-Fixed Frequency Control to Eliminate Slope Compensation for CCM (Duty Cycle>50%)
