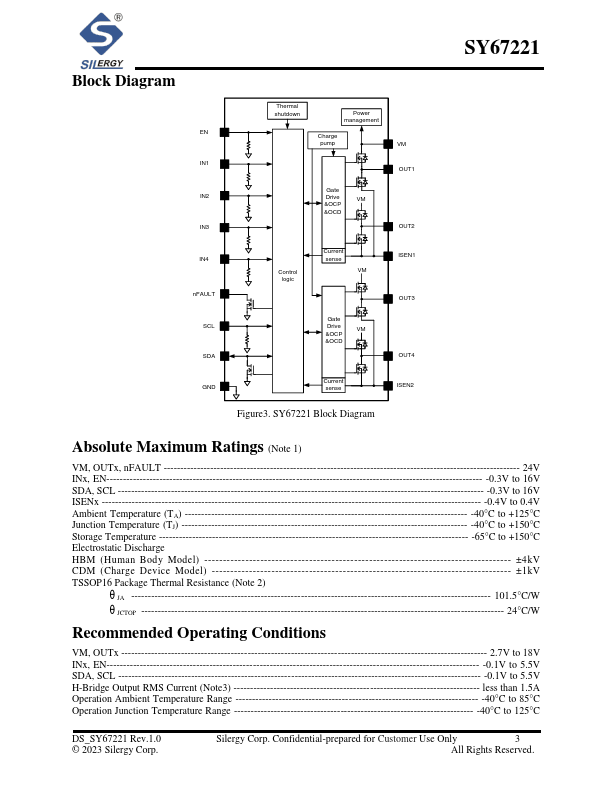

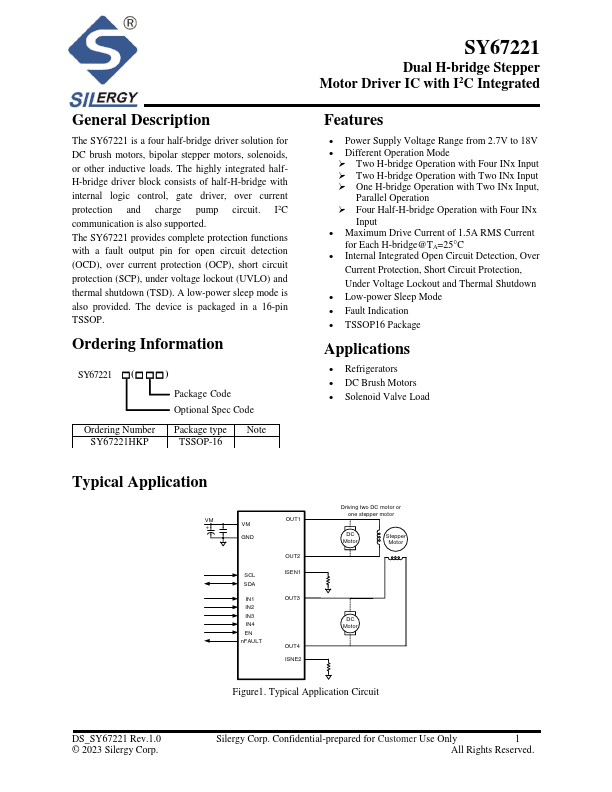

General Description The SY67221 is a four half-bridge driver solution for DC brush motors, bipolar stepper motors, solenoids, or other inductive loads. The highly integrated half H-bridge driver block consists of half-H-bridge with internal logic control, gate driver, over current protection and charge pump circuit. I2C munication is also supported. The SY67221 provides plete protection functions with a fault output pin for open circuit detection (OCD), over current protection (OCP), short circuit protection (SCP), under voltage lockout (UVLO) and thermal shutdown (TSD). A low-power sleep mode is also provided. The device is packaged in a 16-pin TSSOP. Ordering Information - (- - - ) Package Code Optional Spec Code Ordering Number Package type Note SY67221HKP TSSOP-16 Dual H-bridge Stepper Motor Driver IC with I2C Integrated Features - Power Supply Voltage Range from 2.7V to 18V - Different Operation Mode - Two H-bridge Operation with Four INx Input - Two H-bridge Operation with Two INx Input - One H-bridge Operation with Two INx Input, Parallel Operation - Four Half-H-bridge Operation with Four INx Input - Maximum Drive Current of 1.5A RMS Current for Each H-bridge@TA=25°C - Internal Integrated Open Circuit Detection, Over Current Protection, Short Circuit Protection, Under Voltage Lockout and Thermal Shutdown - Low-power Sleep Mode - Fault Indication - TSSOP16 Package Applications - Refrigerators - DC Brush Motors - Solenoid Valve Load Typical...
