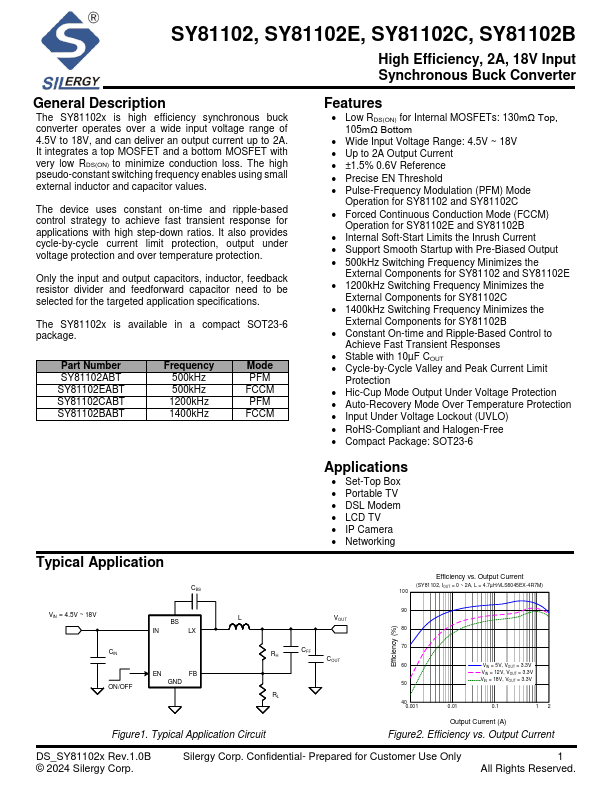

SY81102E Overview
Description
The SY81102x is high efficiency synchronous buck converter operates over a wide input voltage range of 4.5V to 18V, and can deliver an output current up to 2A. It integrates a top MOSFET and a bottom MOSFET with very low RDS(ON) to minimize conduction loss.
Key Features
- Low RDS(ON) for Internal MOSFETs: 130mΩ Top, 105mΩ Bottom
- Wide Input Voltage Range: 4.5V ~ 18V
- Up to 2A Output Current
- ±1.5% 0.6V Reference
- Precise EN Threshold
- Pulse-Frequency Modulation (PFM) Mode Operation for SY81102 and SY81102C
- Forced Continuous Conduction Mode (FCCM) Operation for SY81102E and SY81102B
- Internal Soft-Start Limits the Inrush Current
- Support Smooth Startup with Pre-Biased Output
- 500kHz Switching Frequency Minimizes the External Components for SY81102 and SY81102E
