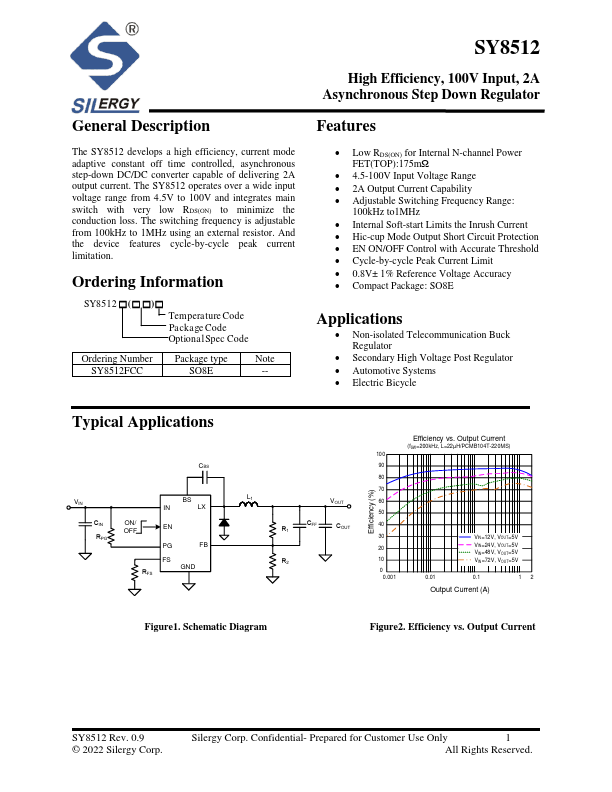

SY8512 Description
The SY8512 develops a high efficiency, current mode adaptive constant off time controlled, asynchronous step-down DC/DC converter capable of delivering 2A output current. The SY8512 operates over a wide input voltage range from 4.5V to 100V and integrates main switch with very low RDS(ON) to minimize the conduction loss. The switching frequency is adjustable from 100kHz to 1MHz using an external resistor.
SY8512 Key Features
- Low RDS(ON) for Internal N-channel Power FET(TOP):175mΩ
- 4.5-100V Input Voltage Range
- 2A Output Current Capability
- Adjustable Switching Frequency Range
- Internal Soft-start Limits the Inrush Current
- Hic-cup Mode Output Short Circuit Protection
- EN ON/OFF Control with Accurate Threshold
- Cycle-by-cycle Peak Current Limit
- 0.8V±1% Reference Voltage Accuracy
- pact Package: SO8E
