SY8511
SY8511 is 0.6A Asynchronous Step Down Regulator manufactured by Silergy.
Description
SY8511 is a high efficiency, current mode adaptive constant off time controlled asynchronous step-down DC/DC converter capable of delivering 0.6A output current. The SY8511 operates over a wide input voltage range from 4.5V to 100V and integrates main switch with very low RDS(ON) to minimize the conduction loss.
Ordering Information
- (-
- )- Tempera ture Code Pa cka ge Code Optional Spec Code
Ordering Number SY8511ADC
Package Type Note TSOT23-6
Features
- Low RDS(ON) for Internal N-channel Power FET:1Ω
- 4.5-100V Input Voltage Range
- 0.6A Output Current Capability
- 200k Hz Pseudo Constant Switching Frequency
- Internal Soft-start Limits the Inrush Current
- Hic-cup Mode Output Short Circuit Protection
- EN ON/OFF Control with Accurate Threshold
- Cycle by Cycle Peak Current Limit
- 0.6V±1 % Reference Voltage
- TSOT23-6 Package
Applications
- Non-isolated Telemunication Buck Regulator
- Secondary High Voltage Post Regulator
- Automotive Systems
- Electric Bicycle
Typical Application
ON/ OFF
5 IN
4 EN
FB 3
GND 2
L1 VOUT
R1
C4 (opt.)
COUT
R2

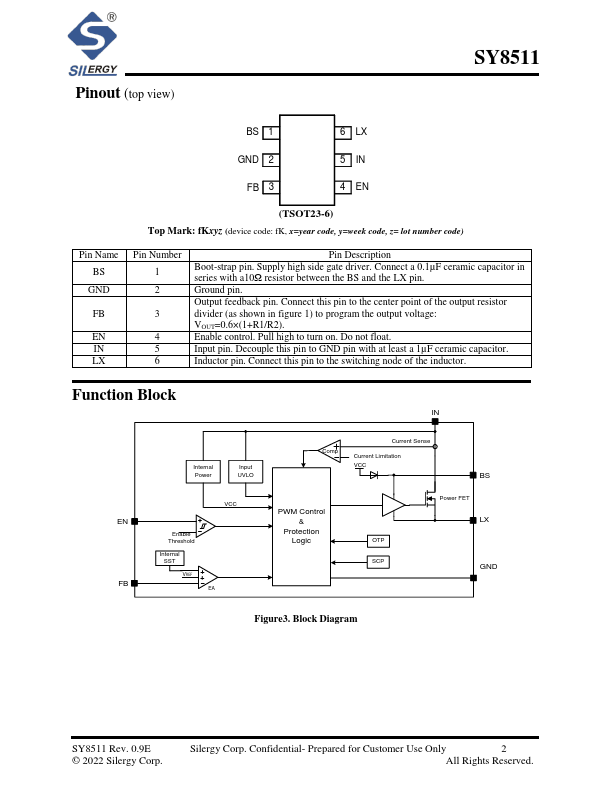

Figure1. Schematic...
