SY8501 - Synchronous Step Down Regulator

Description

SY8501 develops high efficiency synchronous stepdown DC-DC converter capable of delivering 1.0A current.

The SY8501 operates over a wide input voltage range from 7V to 100V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.

Features

  • low RDS(ON) for internal switches (top/bottom): 500mΩ/240mΩ.
  • 7-100V input voltage range.
  • 1A output current capability.
  • Adjustable switching frequency.
  • Instant PWM architecture to achieve fast transient responses.
  • 2ms internal softstart limits the inrush current.
  • Precious +/-2% 1.2V reference.
  • RoHS Compliant and Halogen Free.
  • Compact SO8E package.

📥 Download Datasheet

Datasheet preview – SY8501

Datasheet Details

Part number SY8501
Manufacturer Silergy
File Size 1.28 MB
Description Synchronous Step Down Regulator
Datasheet download datasheet SY8501 Datasheet
Additional preview pages of the SY8501 datasheet.

📁 Similar Datasheet

  • SY8022 - Dual 2.5A/2A Synchronous Step Down Regulator (SANY)
  • SY8022L - Dual 2.5A/2A Synchronous Step Down Regulator (SANY)
  • SY8201CABC - 30V 1A 1.4MHz Synchronous Step-Down Regulator (SUNGOOD)
  • SY8205 - N-Channel MOSFET (SANY)
  • SY826 - Special chips for e-cigarettes (AMICRO)
  • SY84113BU - Low Power 2.5V 1.25Gbps Limiting Post Amplifier (Micrel Semiconductor)
  • SY84402L - 4.25Gbps VCSEL Driver (Micrel Semiconductor)
  • SY84403BL - Ultra Small 3.3V 4.25Gbps CML Low-Power Limiting Post Amplifier (Micrel Semiconductor)
  • SY84782U - Low Power 2.5V 1.25Gbps FP/DFB Laser Diode Driver (Micrel Semiconductor)
  • SY8601 - Linear Li-Ion Battery Charger (TPS)
Other Datasheets by Silergy
  • SY8502 - Synchronous Step Down Regulator
  • SY8511 - 0.6A Asynchronous Step Down Regulator
  • SY8511B - 1.2A Asynchronous Step Down Regulator
  • SY8513 - 3A Asynchronous Step Down Regulator
  • SY8002A1 - 2A Synchronous Step Down Regulator
  • SY8002E1 - 2A Synchronous Step Down Regulator
  • SY8002I - 2A Synchronous Step Down Regulator
  • SY8003 - 1MHz Synchronous Step Down Regulator

Full PDF Text Transcription

Click to expand full text

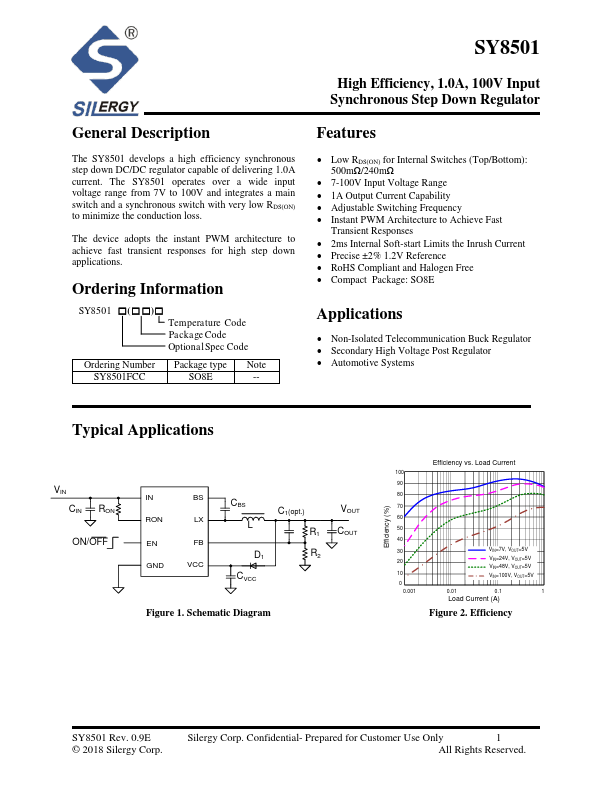

Application Note: SY8501 High Efficiency 500kHz, 1.0A 100V Input Synchronous Step Down Regulator General Description SY8501 develops high efficiency synchronous stepdown DC-DC converter capable of delivering 1.0A current. The SY8501 operates over a wide input voltage range from 7V to 100V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The device adopts the instant PWM architecture to achieve fast transient responses for high step down applications.
