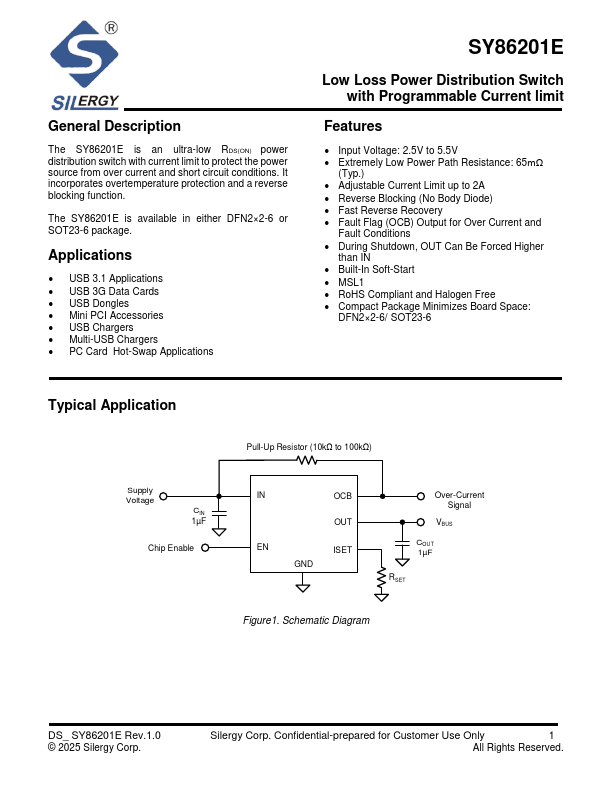

SY86201E Overview
Description
The SY86201E is an ultra-low RDS(ON) power distribution switch with current limit to protect the power source from over current and short circuit conditions. It incorporates overtemperature protection and a reverse blocking function.
Key Features
- Input Voltage: 2.5V to 5.5V
- Extremely Low Power Path Resistance: 65mΩ (Typ.)
- Adjustable Current Limit up to 2A
- Reverse Blocking (No Body Diode)
- Fast Reverse Recovery
