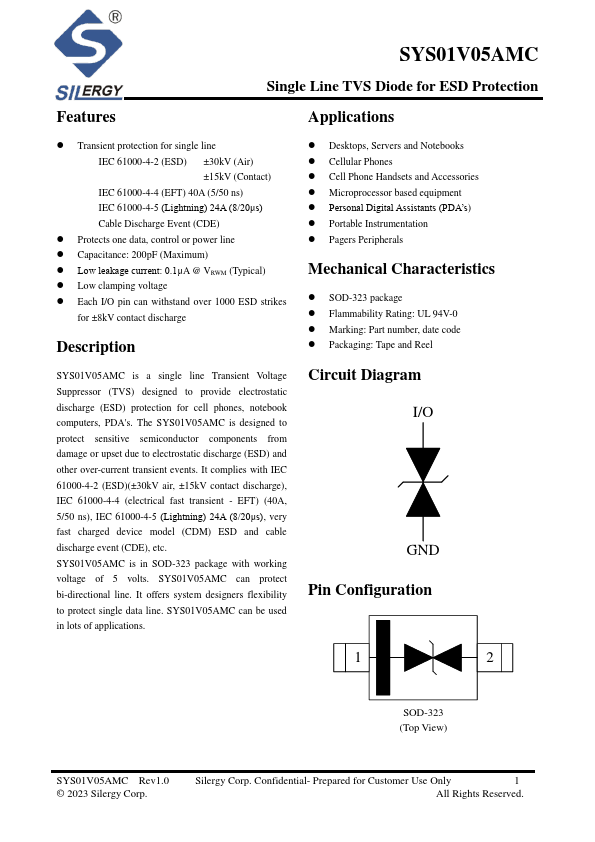

SYS01V05AMC
SYS01V05AMC is Single Line TVS Diode manufactured by Silergy.
Single Line TVS Diode for ESD Protection
Features
- Transient protection for single line IEC 61000-4-2 (ESD) ±30kV (Air) ±15kV (Contact) IEC 61000-4-4 (EFT) 40A (5/50 ns) IEC 61000-4-5 (Lightning) 24A (8/20μs) Cable Discharge Event (CDE)
- Protects one data, control or power line
- Capacitance: 200pF (Maximum)
- Low leakage current: 0.1μA @ VRWM (Typical)
- Low clamping voltage
- Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge
Description
SYS01V05AMC is a single line Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for cell phones, notebook puters, PDA's. The SYS01V05AMC is designed to protect...
