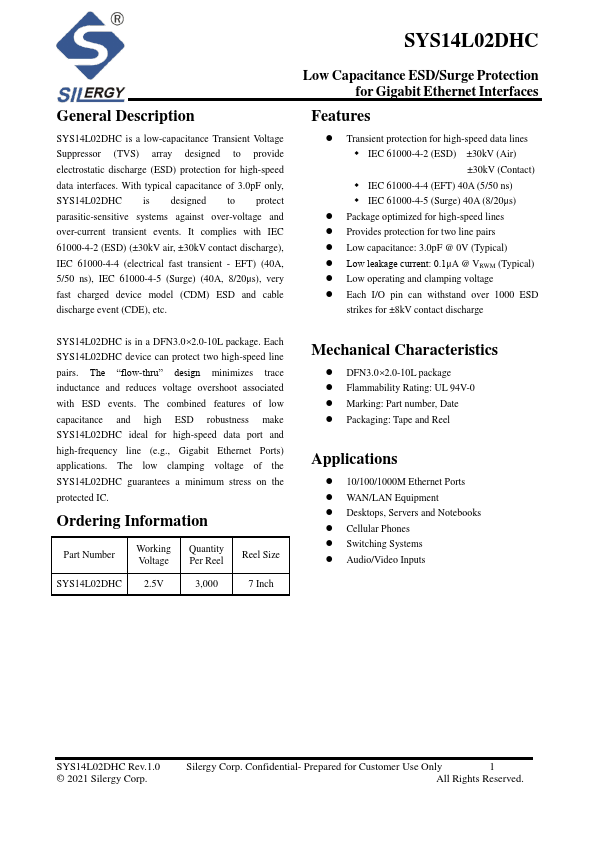

SYS14L02DHC Description
SYS14L02DHC is a low-capacitance Transient Voltage Suppressor (TVS) array designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 3.0pF only, SYS14L02DHC is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. Low Capacitance ESD/Surge Protection for Gigabit Ethernet Interfaces.
SYS14L02DHC Key Features
- Transient protection for high-speed data lines
- IEC 61000-4-2 (ESD) ±30kV (Air) ±30kV (Contact)
- IEC 61000-4-4 (EFT) 40A (5/50 ns)
- IEC 61000-4-5 (Surge) 40A (8/20μs)
- Package optimized for high-speed lines
- Provides protection for two line pairs
- Low capacitance: 3.0pF @ 0V (Typical)
- Low leakage current: 0.1μA @ VRWM (Typical)
- Low operating and clamping voltage
- Each I/O pin can withstand over 1000 ESD
