XB4908 - One Cell Lithium-ion/Polymer Battery Protection

General Description

The XB4908 SERIES product is a high i ntegration solution for lithium-ion/polymer battery protection.

XB4908 SERIES contai ns advanced power MOSFET, high-accura cy voltage detection circuits and delay circ uits.

Key Features

  • Protection of Charger Reverse Connec -tion.
  • Protection of Battery Cell Reverse Con -nection Without external load.
  • Integrated Advanced Power MOSFET with Equivalent of 13.5 mΩ RSS(ON).

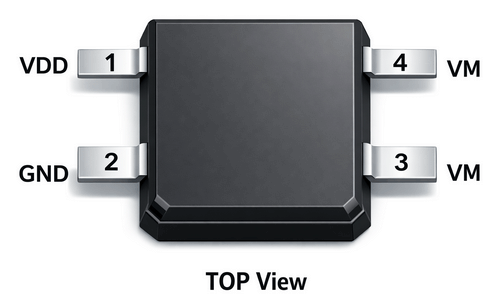

  • Ultra-small ESN4 Package.
  • Only One External Capacitor Required.
  • Over-temperature Protection.
  • Overcharge Current Protection.
  • Two-step Overcurrent Detection -Over-discharge Current -Load Short Circuiting.
  • Low Current Consumption -Operation Mode: 3.3µA typ -Power-down Mod.

📥 Download Datasheet

Datasheet Details

Part number XB4908
Manufacturer XySemi
File Size 692.20 KB
Description One Cell Lithium-ion/Polymer Battery Protection
Datasheet download datasheet XB4908 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XB431 low-voltage 3-terminaladjustable voltage reference XINLUDA
XB4A 0.4-mm Pitch Board to FPC Connector Omron Electronics LLC
XB4B 0.4-mm Pitch Board to FPC Connector Omron Electronics LLC
XB4BA941 red flush reset pushbutton Schneider
XB4BT845 Emergency stop pushbutton Schneider

Other Datasheets by XySemi

Part Number Description
XB4908A One Cell Lithium-ion/Polymer Battery Protection
XB4908AJL One Cell Lithium-ion/Polymer Battery Protection IC
XB4908G One Cell Lithium-ion/Polymer Battery Protection
XB4908VD One Cell Lithium-ion/Polymer Battery Protection IC
XB4301D One Cell Lithium-ion/Polymer Battery Protection IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
XB4908 SERIES One Cell Lithium-ion/Polymer Battery Protection IC GENERAL DESCRIPTION The XB4908 SERIES product is a high i ntegration solution for lithium-ion/polymer battery protection. XB4908 SERIES contai ns advanced power MOSFET, high-accura cy voltage detection circuits and delay circ uits. XB4908 SERIES is put into an ultra-s mall ESN4 package and only one external component makes it an ideal solution in li mited space of battery pack. XB4908 SERIES has all the protection fu nctions required in the battery application i ncluding overcharging, over-discharging, o vercurrent and load short circuiting protecti on etc. The accurate overcharging detectio n voltage ensures safe and full utilization c harging. The low standby current drains littl e current from the cell while in storage.
