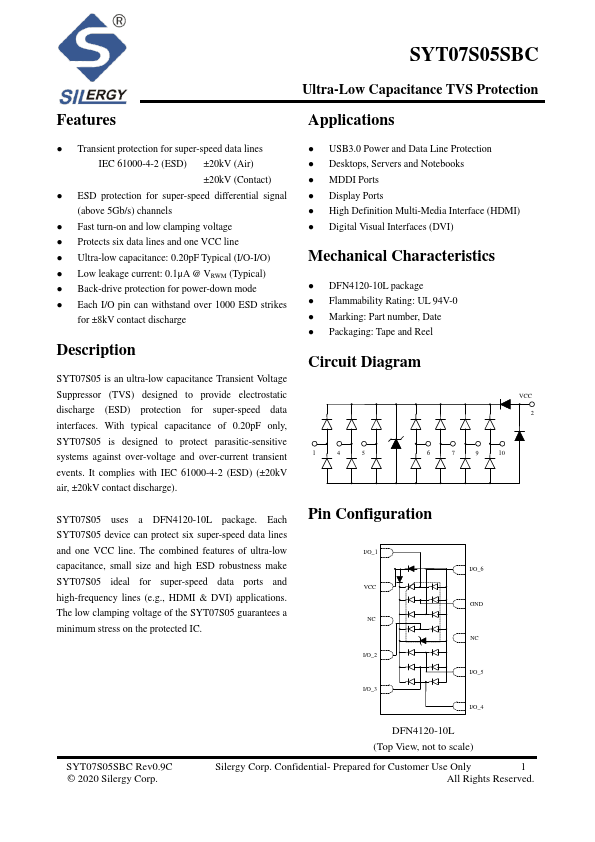

SYT07S05SBC
SYT07S05SBC is Ultra-Low Capacitance TVS Protection manufactured by Silergy.
Ultra-Low Capacitance TVS Protection
Features
Applications
- Transient protection for super-speed data lines IEC 61000-4-2 (ESD) ±20kV (Air) ±20kV (Contact)
- ESD protection for super-speed differential signal (above 5Gb/s) channels
- Fast turn-on and low clamping voltage
- Protects six data lines and one VCC line
- Ultra-low capacitance: 0.20pF Typical (I/O-I/O)
- Low leakage current: 0.1μA @ VRWM (Typical)
- Back-drive protection for power-down mode
- Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge
Description
SYT07S05 is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for...
