SYT46S03DVD datasheet by Silergy.
| Part number | SYT46S03DVD |
|---|---|
| Datasheet | SYT46S03DVD-Silergy.pdf |
| File Size | 911.12 KB |
| Manufacturer | Silergy |
| Description | Ultra-Low CapacitanceTVS Protection |
|
|

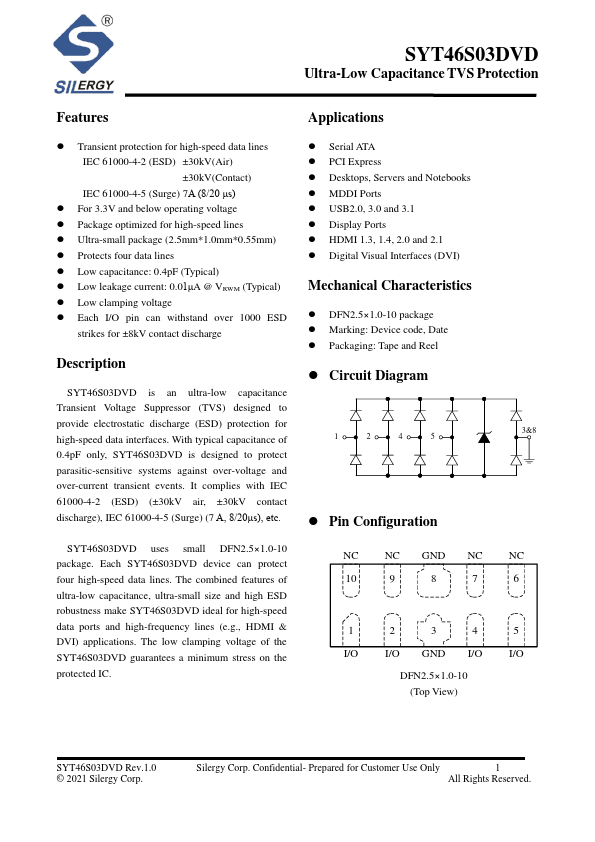

SYT46S03DVD is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.4pF only, SYT46S03DVD is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. Serial ATA PCI Express Desktops, Servers and Notebooks MDDI Ports USB2.0, 3.0 and 3.1...
| Part Number | Description |
|---|---|
| SYT01N12DWC | Low CapacitanceTVS Protection |
| SYT01N24DWC | Low Capacitance TVS Protection |
| SYT03N24AOA | CAN bus TVS Protection |
| SYT03S05SIC | Ultra-Low Capacitance TVS Protection |
| SYT04L05AWC | Low Capacitance TVS Protection |
| SYT07S05SBC | Ultra-Low Capacitance TVS Protection |
| SYT11L05 | Low Capacitance TVS Protection |
| SYT21A05DXC | Ultra-Low Capacitance TVS Protection |
| SYT21S03DWC | Ultra-Low CapacitanceTVS Protection |
| SYT664 | High Current Over Voltage Protection Switch |
