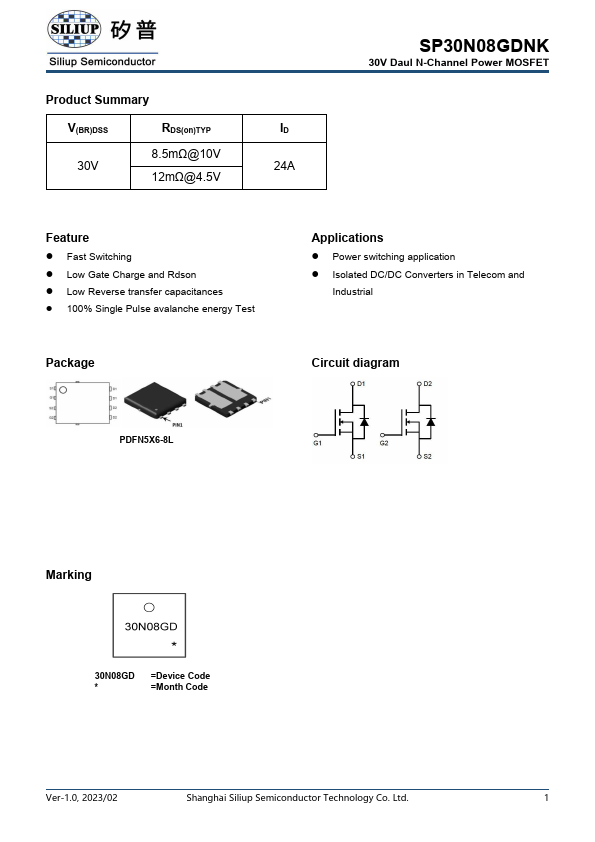

SP30N08GDNK
SP30N08GDNK is 30V Daul N-Channel Power MOSFET manufactured by Siliup Semiconductor.
Feature
- Fast Switching
- Low Gate Charge and Rdson
- Low Reverse transfer capacitances
- 100% Single Pulse avalanche energy Test
Package
Applications
- Power switching application
- Isolated DC/DC Converters in Tele and
Industrial
Circuit diagram
PDFN5X6-8L
Marking
30N08GD =Device Code
- =Month Code
Ver-1.0, 2023/02
Shanghai Siliup Semiconductor Technology Co. Ltd.
30V Daul N-Channel Power MOSFET

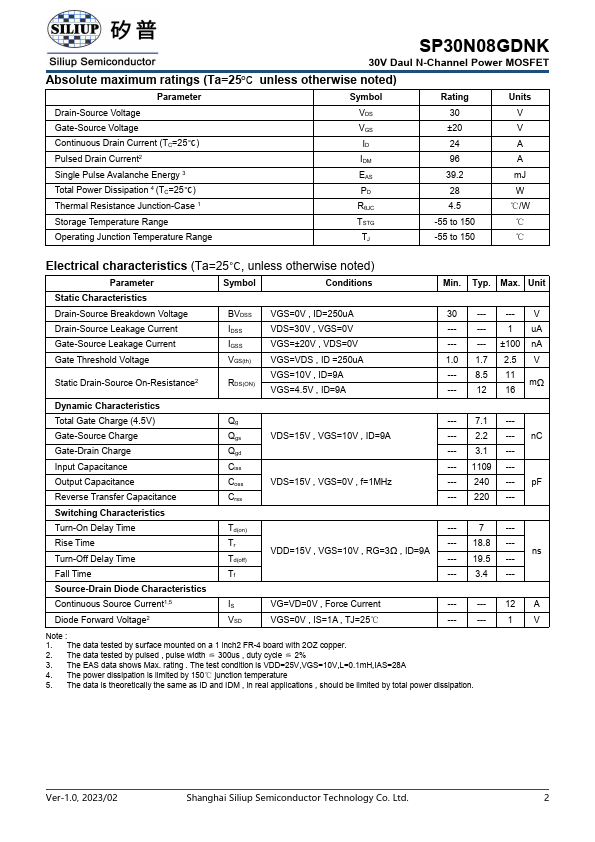

Absolute maximum ratings (Ta=25℃ unless otherwise noted)
Parameter
Symbol
Rating
Units
Drain-Source Voltage
Gate-Source Voltage Continuous Drain Current (TC=25℃) Pulsed Drain Current2
±20
Single Pulse Avalanche Energy 3 Total Power Dissipation 4 (TC=25℃) Thermal Resistance Junction-Case 1
EAS PD RθJC
39.2 m J
℃/W
Storage Temperature Range
TSTG
-55 to...
