SLM8833 - 1.5A Thermoelectric Cooler Controller

Key Features

  • The SLM8833 is a monolithic TEC controller with an integrated TEC controller. It has a linear power stage and a pulse-width modulation (PWM) power stage. The linear controller works with the PWM driver to control the internal power MOSFETs in an H-bridge configuration. Depending on the control voltage at the CONT input, the SLM8833 drives current through a TEC to settle the temperature of a laser diode or a passive component attached to the TEC module to the programmed target temperature. The c.

📥 Download Datasheet

Datasheet Details

Part number SLM8833
Manufacturer Sillumin
File Size 0.97 MB
Description 1.5A Thermoelectric Cooler Controller
Datasheet download datasheet SLM8833 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SLM80N03T 30V N-Channel MOSFET Msemitek
SLM80N06T 60V N-Channel MOSFET Msemitek
SLM-1251 High Luminance Type Surface Mount LEDs Rohm
SLM-13 Surface Mount LEDs Rohm
SLM-13xx Molded Package Chip LEDs Rohm

Other Datasheets by Sillumin

Part Number Description
SLM8834 1.5A Thermoelectric Cooler Controller
SLM8835 3A Thermoelectric Cooler Controller
SLM1909 Motor Driver
SLM2001S 200V Half Bridge Driver
SLM2003S 200V Half-Bridge Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

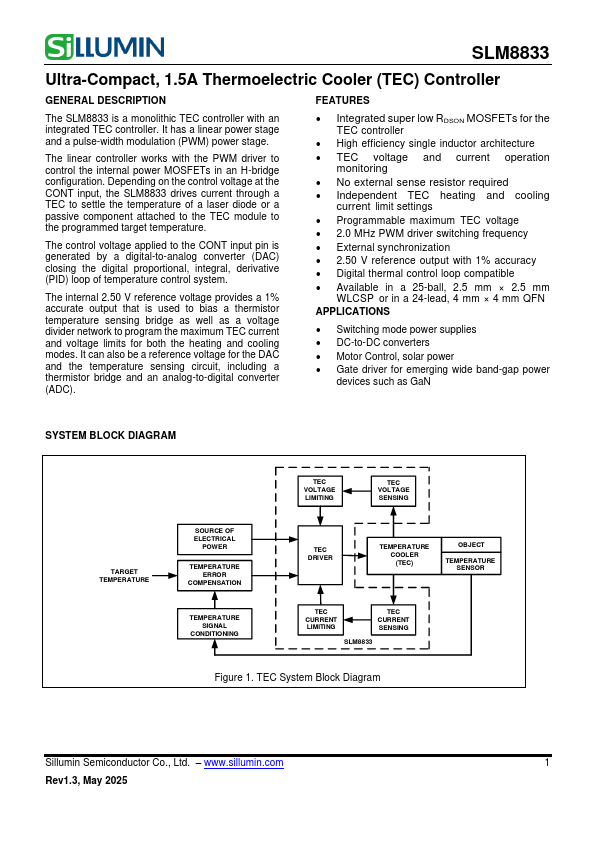

SLM8833 Ultra-Compact, 1.5A Thermoelectric Cooler (TEC) Controller GENERAL DESCRIPTION FEATURES The SLM8833 is a monolithic TEC controller with an integrated TEC controller. It has a linear power stage and a pulse-width modulation (PWM) power stage. The linear controller works with the PWM driver to control the internal power MOSFETs in an H-bridge configuration. Depending on the control voltage at the CONT input, the SLM8833 drives current through a TEC to settle the temperature of a laser diode or a passive component attached to the TEC module to the programmed target temperature. The control voltage applied to the CONT input pin is generated by a digital-to-analog converter (DAC) closing the digital proportional, integral, derivative (PID) loop of temperature control system.
