SLM8834 - 1.5A Thermoelectric Cooler Controller

General Description

The SLM8834 is a monolithic TEC controller with an integrated TEC controller.

It has a linear power stage, a pulse-width modulation (PWM) power stage, and two zero-drift, rail-to-rail operational amplifiers.

Key Features

  • Integrated super low RDSON MOSFETs for the TEC controller.
  • High efficiency single inductor architecture.
  • TEC voltage and current operation monitoring.
  • No external sense resistor required.
  • Independent TEC heating and cooling current limit settings.
  • Programmable maximum TEC voltage.
  • 2.0 MHz PWM driver switching frequency.
  • External synchronization.
  • Two integrated, zero drift, rail-to-rail chopper amplifiers.

📥 Download Datasheet

Datasheet Details

Part number SLM8834
Manufacturer Sillumin
File Size 936.42 KB
Description 1.5A Thermoelectric Cooler Controller
Datasheet download datasheet SLM8834 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SLM80N03T 30V N-Channel MOSFET Msemitek
SLM80N06T 60V N-Channel MOSFET Msemitek
SLM-1251 High Luminance Type Surface Mount LEDs Rohm
SLM-13 Surface Mount LEDs Rohm
SLM-13xx Molded Package Chip LEDs Rohm

Other Datasheets by Sillumin

Part Number Description
SLM8833 1.5A Thermoelectric Cooler Controller
SLM8835 3A Thermoelectric Cooler Controller
SLM1909 Motor Driver
SLM2001S 200V Half Bridge Driver
SLM2003S 200V Half-Bridge Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

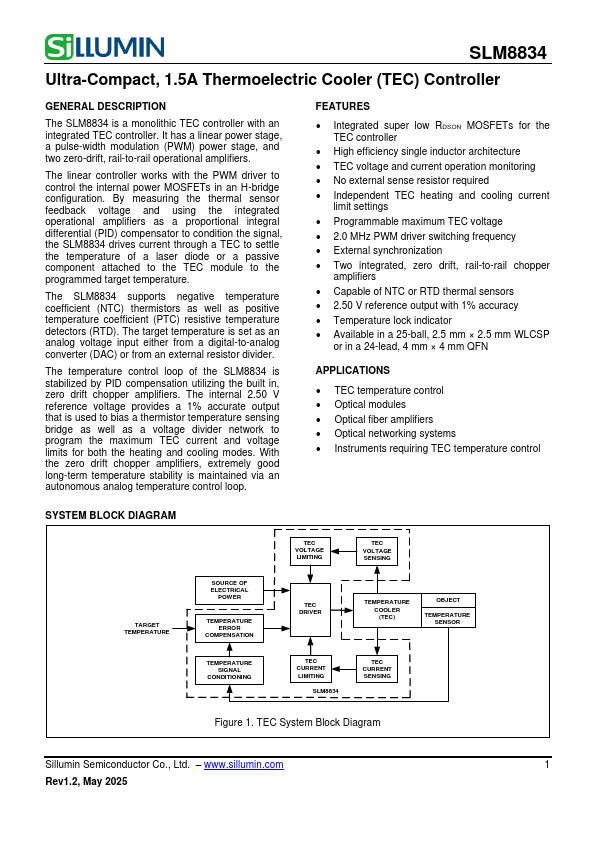

SLM8834 Ultra-Compact, 1.5A Thermoelectric Cooler (TEC) Controller GENERAL DESCRIPTION The SLM8834 is a monolithic TEC controller with an integrated TEC controller. It has a linear power stage, a pulse-width modulation (PWM) power stage, and two zero-drift, rail-to-rail operational amplifiers. The linear controller works with the PWM driver to control the internal power MOSFETs in an H-bridge configuration. By measuring the thermal sensor feedback voltage and using the integrated operational amplifiers as a proportional integral differential (PID) compensator to condition the signal, the SLM8834 drives current through a TEC to settle the temperature of a laser diode or a passive component attached to the TEC module to the programmed target temperature.
